中国中新世轭齿象类新材料及有关分类厘定

doi:10.19615/j.cnki.2096-9899.230308

摘要/Abstract

摘要：

中国中新世的轭型齿长鼻类化石虽然分布广泛，但材料稀少，分类上经历了从多个轭齿象(Zygolophodon)种到全部归为戈壁轭齿象(Zygolophodon gobiensis)一个种的状态。戈壁轭齿象既包含轭型化程度较高的纤细型也包含介于轭型齿和丘型齿中间的粗壮型。最近，随着粗壮型被归入中新乳齿象属(Miomastodon)以及新材料的发现，有必要对中国中新世的轭齿象类进行重新厘定。结合已知的纤细型轭齿象颊齿材料和新发现的玛姆象科(Mammutidae)材料，对中国中新世轭齿象类材料进行研究，认为轭型化程度较高的纤细型种类包括内蒙古轭齿象(Z. nemonguensis)、格氏轭齿象(Z. gromovae)、集宁轭齿象(Z. jiningensis)、庆义轭齿象(Z. chinjiensis)以及归入小龙潭嵌齿象(Gomphotherium xiaolongtanensis)的两件标本，都应该归入传统意义上的轭齿象属，因为它们臼齿齿脊尖锐，主齿柱前后新月嵴成细嵴状，中心小尖消失或发育很弱，副齿柱中附锥分裂，轭齿嵴发育，侧视齿柱呈Ʌ形，齿谷V形，这些零散的颊齿形态与欧洲苏黎世轭齿象(Z. turicensis)正型标本相似，由于材料比较缺乏，暂将其归为苏黎世轭齿象相似种(Zygolophodon cf. Z. turicensis)。来自甘肃和政、内蒙古通古尔、宁夏同心和新疆准噶尔的新材料，轭型化程度较低，对应于介于轭型齿和丘型齿之间的粗壮型，将其分别归入中新乳齿象属的戈壁种(Miomastodon gobiensis)和同心种(M. tongxinensis)。与戈壁种相比，同心种的臼齿主齿柱前后新月嵴发育更弱，前后中心小尖更大。地质时代及地理分布表明，早中新世至中中新世中国北方的轭齿象类主要以Miomastodon为主。新材料的发现和对整个轭齿象类的重新厘定，为玛姆象类从欧亚大陆向北美的扩散以及在中国本土的演化提供了证据。

关键词: 中国, 中新世, 玛姆象类, 轭齿象属, 中新乳齿象属

Abstract:

The zygodont proboscideans from the Miocene strata of China are widely distributed. However, the materials are scarce, and their classification has experienced a longtime controversy, from the chaotic state of multiple Zygolophodon species to the only one species, Zygolophodon gobiensis. The combined species Z. gobiensis comprises both the gracile type with a high degree of zygodonty and the robust type that is between the typical bunodont and zygodont morphology. Recently, as the robust type has been re-allocated to another genus Miomastodon and new fossil remains were discovered, it is necessary to further evaluate and classify the zygodont proboscideans from the Miocene of China. In the present paper, we restudied the previously published zygodont specimens of the gracile type, as well as several unpublished Mammutidae specimens. The former including Z. nemonguensis, Z. gromovae, Z. jiningensis, Z. chinjiensis and two specimens of Gomphotherium xiaolongtanensis, represents Zygolophodon in the original sense in China. In these specimens, the tip of the loph(ids) are sharp. The anterior and posterior pretrite central conules are absent or very weak, and the anterior and posterior crescentoids are sharp and slender. The posttrite mesoconelets are well subdivided and the zygodont crests are developed. In buccal view, the loph(id)s are “Ʌ-shaped” and the interloph(id)s are “V-shaped”. Their molar morphology resembles that of Z. turicensis, and hereby, they were identified as Zygolophodon cf. Z. turicensis. Several unpublished specimens from Hezheng, Gansu, Tunggur, Nei Mongol, Tongxin, Ningxia and Junggar, Xinjiang exhibit a lower degree of zygodonty, corresponding to the “robust type of Zygolophodon” in which the molar morphology is between the typical bunodonts and zygodonts. The pretrite crescentoids are thicker than Zygolophodon cf. Z. turicensis, and the pretrite central conules usually present on the first and second interloph(id)s. According to the stratigraphic age and characteristics, two species, Miomastodon gobiensis and Mio. tongxinensis were identified. The anterior and posterior pretrite crescentoids of Mio. tongxinensis are weaker and the pretrite central conules are larger than Mio. gobiensis. Geographical distribution indicates that Miomastodon is the predominant member of zygolophodonts in the Early and Middle Miocene in northern China. The discovery of new materials and the reclassification of zygolophodonts provide further evidence for dispersal of Mammutidae from Eurasia to North America and the evolutionary relationships among the species of the family Mammutidae in China.

Key words: China, Miocene, Mammutidae, Zygolophodon, Miomastodon

中图分类号:

Q915.878

张晓晓, 杨絮, 孙燕, 王洪江, 杨蓉, 陈善勤, 王世骐, 李虹. 中国中新世轭齿象类新材料及有关分类厘定. 古脊椎动物学报, 2023, 61(2): 142-160.

ZHANG Xiao-Xiao, YANG Xu, SUN Yan, WANG Hong-Jiang, YANG Rong, CHEN Shan-Qin, WANG Shi-Qi, LI Hong. New zygolophodonts from Miocene of China and their taxonomy. Vertebrata Palasiatica, 2023, 61(2): 142-160.

图/表 8

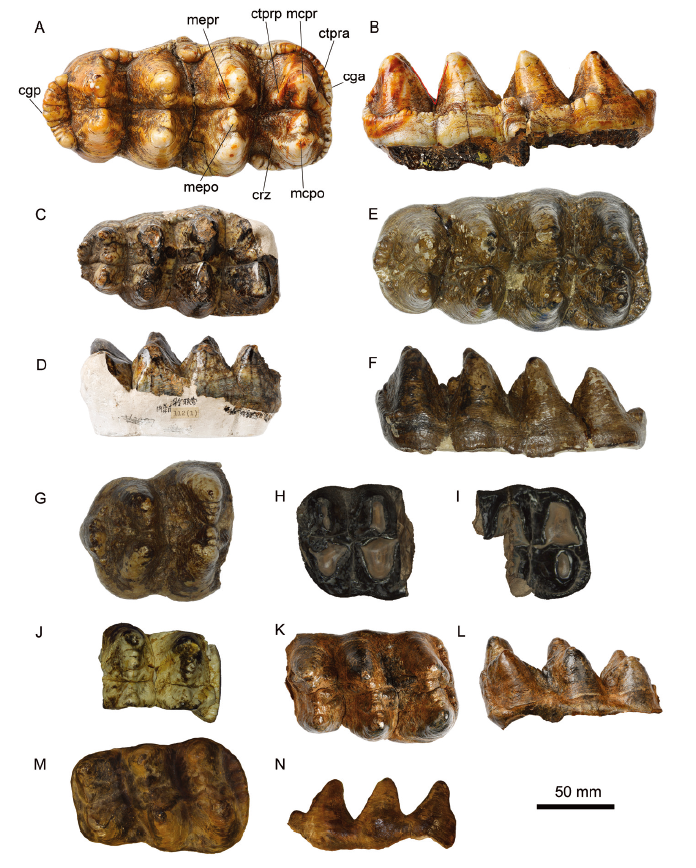

Fig. 1 Molars of Zygolophodon cf. Z. turicensis and Z. turicensis A-B. IVPP V2487, left M3 in occlusal (A) and lingual (B) views; C-D. IVPP RV74003, left M3 in occlusal (C) and lingual (D) views; E-F. IVPP V4688.1, left M3 in occlusal (E) and lingual (F) views;G. V4688.2, the posterior part of right M3 in occlusal view; H. V4685.7, anterior part of left M1 in occlusal view; I. V4685.8, posterior two lophs of right M1 in occlusal view; J. V5156, part of right M3 in occlusal view; K-L. V26802, left m3 in occlusal (K) and buccal (L) views; M-N. Zygolophodon turicensis, NMB OSM1288 (type cast), left m2 in occlusal (M) and buccal (N) views Abbreviations: cga, anterior cingulum; cgp, posterior cingulum; crz, zygodont crest; ctpra, anterior pretrite crescentoid; ctprp, posterior pretrite crescentoid; mcpo, posttrite main cusp; mcpr, pretrite main cusp;mepo, posttrite mesoconelet; mepr, pretrite mesoconelet

Table 1 Cheek teeth measurements of Zygolophodon and Miomastodon (mm)

No.	Taxon	Specimen	L	W	W1	W2	W3	W4	Hpr(2)	Hpo(2)
IVPP V2487	Z. cf. Z. turicensis	left M3	190.97	92.11	81.89	92.11	84.65	73.45	61.55	55.87
RV74003	Z. cf. Z. turicensis	left M3	130.27	73.56	61.47	73.56	63.08	47.11	32.78+	41.56+
V4688.1	Z. cf. Z. turicensis	left M3	178.32	93.18	89.33	93.18	82.51	70.01	63.52	62.56
V26802	Z. cf. Z. turicensis	left m3	108.68+	72.91	72.92	72.01	64.76+		44.47+	27.37+
1986-NMG-DM	Mio. gobiensis	left m3	189.85	94.42	87.98	94.42	90.52	72.93	46.33+	58.27
1986-NMG-DM	Mio. gobiensis	right m3	187.84	96.95	90.48	96.95	91.78	72.04	41.21+	58.97
HMV1808	Mio. gobiensis	left m3	158.68	73.81	67.14	73.81	67.86	51.76	27.10+	35.25+
HMV1808	Mio. gobiensis	right m3	148.99	71.22	67.38	71.22	64.81	46.98	26.62+	39.83+
IVPP V26615	Mio. gobiensis	right m3	178.94	87.57	80.79	87.57	86.42
HMV1938	Mio. gobiensis	right M3	147.18+	85.02	82.55	85.02	69.99	42.80
HMV1939	Mio. gobiensis	right M2	129.56	85.11	77.18	82.41	85.11
IVPP V26803	Mio. gobiensis	right M3	144.96	75.23	72.81	75.23	71.09	51.61	29.65+	47.02
IVPP V30715	Mio. tongxinensis	right M3	92.82+	79.14	79.14	73.06			49.80	47.76

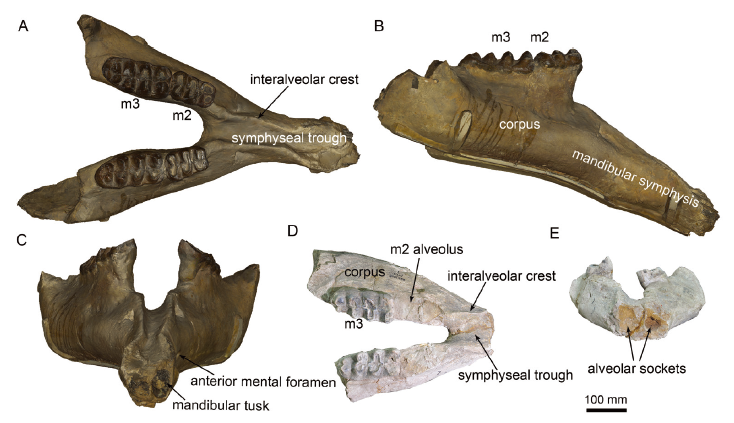

Fig. 2 Mandibles of Miomastodon gobiensis A-C. 1986-NMG-DM in dorsal (A), lateral (B), and rostral (C) views;D-E. HMV1808 in dorsal (D) and rostral (E) views

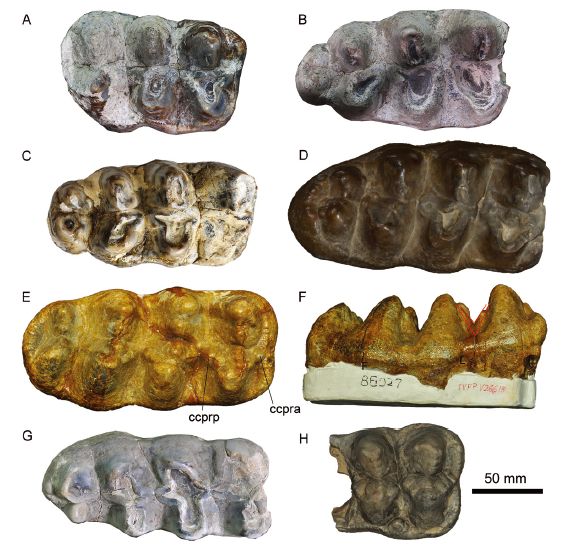

Fig. 3 Molars of Miomastodon A-G. Mio. gobiensis: A. HMV1939, right M2 in occlusal view, B. HMV1938, right M3 in occlusal view,C. IVPP V26803, right M3 in occlusal view, D. 1986-NMG-DM, right m3 in occlusal view,E-F. IVPP V26615, right m3 in occlusal (E) and buccal (F) views, G. HMV1808, left m3 in occlusal view;H. Mio. tongxinensis, IVPP V30715, incomplete right M3 in occlusal view Abbreviations: ccpra. anterior pretrite central conule; ccprp. posterior pretrite central conule

Table 2 Measurements of the mandibles of Miomastodon gobiensis, after Tassy (2013) (mm)

	1986-NMG-DM	HMV1808
Length of preserved symphyseal	432.88
Alveolar distance (from the most salient point of the trigonum retromolar to the symphyseal border of the corpus)	363.28	320+
Width of corpus measured at the anterioralveolus (or the grinding tooth if the alveolus is entirely resorbed)	120.51	70.32
Posterior symphyseal width	270.88	193.48
Maximum symphyseal width	136.04
Minimum symphyseal width	114.64	160.85
Maximum width of rostral trough	100.40
Minimum width of rostral trough	41.27	46.96
Internal width between anterior alveoli (or grinding teeth if the alveoli are resorbed)	116.78	72.20
Maximum height of corpus (measurement taken perpendicular to the ventral border of the corpus)	220.12	97.53
Height of corpus measured at the root of the ramus (measurement as above)	201.05	104.23
Rostral height measured at the symphyseal border (measurement taken perpendicular to the ventral border of the symphyseal rostrum)	176.71	99.28
Mid-alveolar length measured on the buccal side between the anterior alveolus (or grinding tooth if the alveolus is resorbed) and the root of the ramus	290.83	270

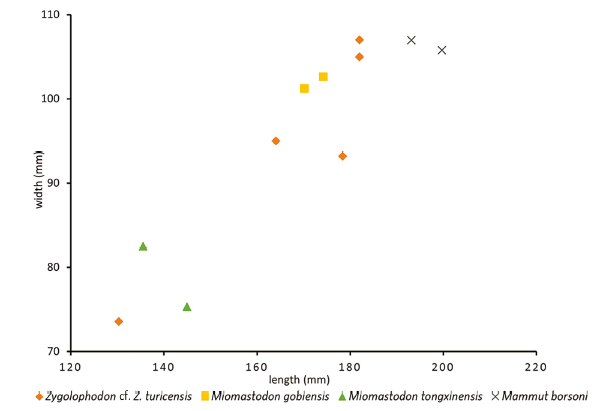

Fig. 4 Scatter diagrams comparing the dimensions of M3 (lengths and widths max.) in several species of zygodont proboscideans from China

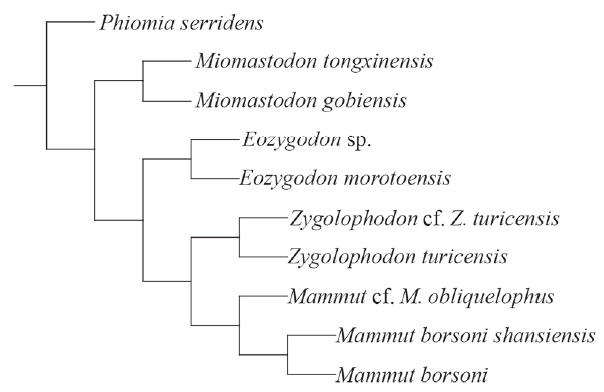

Fig. 5 Cladistic analysis of the family Mammutidae The cladistic analysis is performed using TNT v.1.1 and new technology search, based on the characters provided in Appendix 1 and the data matrix in Appendix 2; CI (consistency index) = 0.807,RI (retention index) = 0.653

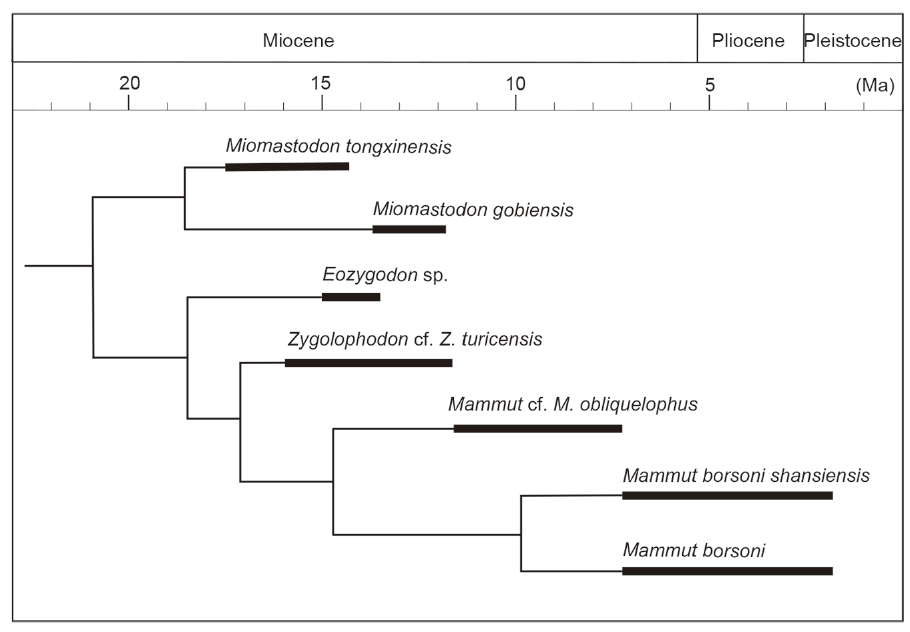

Fig. 6 Proposed evolutionary relationships and geohistoric distribution of species of the family Mammutidae in China

参考文献 54

[1]	Andrews C W, 1906. A descriptive catalogue of the Tertiary Vertebrata of the Fayum, Egypt. London: British Museum of Natural History. 1-324
[2]	Borissiak A A, 1936. Mastodon atavus n. sp., der primitivste Vertreter der Gruppe Mio. angustidens. Trav Inst Paleozool, Acad Sci USSR, 5: 171-234
[3]	Březina J, 2014. Osteological Research on Mammals from the Czujanova sand pit (Mikulov) with Recpect to the Study of Proboscidea. Brno: Masaryk University, Faculty of Science. 1-110
[4]	Chen G F, 1978. Mastodont remains from the Miocene of Zhongning-Tongxin region in Ningxia. Vert PalAsiat, 16: 103-110
[5]	Chen G F, 1988. Mastodont remains from the Miocene of Junggar Basin in Xinjiang. Vert PalAsiat, 26: 265-277
[6]	Chen G F, 2021. Basal synapsids and mammals:hyracoidea, proboscidea, etc. In: Qiu Z X, Li C K eds. Palaeovertebrata Sinica. Beijing: Science Press. 1-231
[7]	Chow M Z, Chang Y P, 1961. New mastodonts from North China. Vert PalAsiat, (3): 245-255
[8]	Chow M C, Chang Y P, 1974. Chinese Fossil Elephantoids. Beijing: Science Press. 1-74
[9]	Chow M C, Chang Y P, You Y Z, 1978. Notes on some mastodons from Yunnan. Prof Pap Stratigr Palaeontol, 7: 68-74
[10]	Deng T, Hou S K, Wang S Q, 2019. Neogene integrative stratigraphy and timescale of China. Sci China Earth Sci, 49: 1-14
[11]	Duangkrayom J, Wang S Q, Deng T et al., 2017. The first Neogene record of Zygolophodon (Mammalia, Proboscidea) in Thailand: implications for the mammutid evolution and dispersal in Southeast Asia. J Paleontol, 1: 179-193
[12]	Dubrovo I A, 1970. New data to Miocene mastodonts of Inner Mongolia. In: Flerov K K ed.ed. Materials for the Evolutions of Continental Vertebrates. Moscow: Nauka. 135-140
[13]	Dubrovo I A, 1974. New data on mastodonts of western Mongolia. Tr Sovmestn Sov-Mong Paleont Eksped, 1: 64-73
[14]	Erdbriuk D P, 1967. A collection of mammalian fossils from S. E. Shansi, China. I. Publ Nat Hist Genoot Limburg, 17: 31-42
[15]	Göhlich U B, 1999. Order Proboscidea. In: Rössner G E, Heissig K eds. The Miocene Land Mammals of Europe. München: Verlag Dr. 157-168
[16]	Hopwood A T, 1935. Fossil Proboscidea from China. Palaeontol Sin, Ser C, 9: 1-108
[17]	Koenigswald W v, Widga C, Göhlich U B, 2021. New mammutids (Proboscidea) from the Clarendonian and Hemphillian of Oregon - a survey of Mio-Pliocene mammutids from North America. Bull Mus Nat Hist Oregon, 1-104
[18]	Lehmann U, 1950. Über Mastodontenreste in der Bayerischen Staatssammlung in München. Palaeontogr Abt A, 99: 121-228
[19]	Li C X, Ji X P, Zhang S T et al., 2021. The new fossil record of Stegolophodon latidens from the Xiaolongtan locality, Yunnan, China, and the discussion on the age of the Lufengpithecus keiyuanensis. Chinese Sci Bull, 66: 1469-1481 DOI URL
[20]	Li C X, Wang S Q, Yang Q, 2023. Discovery of a primitive Gomphotherium from the Early Miocene of northern China and its biochronology and palaeobiogeography significance. Hist Biol, 35: 1-9 DOI URL
[21]	Li S H, Deng C L, Dong W et al., 2015. Magnetostratigraphy of the Xiaolongtan Formation bearing Lufengpithecus keiyuanensis in Yunnan, southwestern China: constraint on the initiation time of the southern segment of the Xianshuihe-Xiaojiang fault. Tectonophysics, 655: 213-226 DOI URL
[22]	Li Y, Zhang X X, Li C X et al., 2021. The first cranium of Miomastodon gobiensis and its biostratigraphic distribution. Chinese Sci Bull, 66: 1527-1538 DOI URL
[23]	Lortet L, Chantre E, 1878. Recherches sur les mastodontes et les faunes mammalogiques qui les accompagnent. Arch Mus Hist Nat Lyon, 2: 285-311
[24]	Madden C T, 1980. Zygolophodon from Subsaharan Africa, with observations on the systematics of palaeomastodontid proboscideans. J Paleontol, 54: 57-64
[25]	Matsumoto H, 1924. A revision of Palaeomastodon dividing it into two genera, and with descriptions of two new species. Bull Am Mus Nat Hist, 50: 1-58
[26]	Mazo A V, 1996. Gomphotheres and mammutids from the Iberian Peninsula. In: Shoshani J, Tassy P eds. The Proboscidea Evolution and Paleoecology of Elephants and Their Relatives. Oxford: Oxford Science Publications. 136-142
[27]	Mothé D, Avilla L S, Zhang D S et al., 2016. A new Mammutidae (Proboscidea, Mammalia) from the Late Miocene of Gansu Province, China. An Acad Bras Ciênc, 88: 65-74 DOI URL
[28]	Osborn H F, 1921. The evolution, phylogeny, and classification of the Proboscidea. Am Mus Novit, 1: 1-15
[29]	Osborn H F, 1936. Proboscidea: a Monograph of the Discovery, Evolution, Migration and Extinction of the Mastodonts and Elephants of the World. New York: The American Museum Press. 1-802
[30]	Osborn H F, Granger W, 1932. Platybelodon grangeri, three growth stages, and a new Serridentine from Mongolia. Am Mus Novit, 537: 1-13
[31]	Pickford M, 2003. New Proboscidea from the Miocene strata in the lower Orange river valley, Namibia. Mem Geol Surv Namibia, 19: 207-256
[32]	Pickford M, Senut B, Mein P et al., 1995. The discovery of Lower and Middle Miocene vertebrates at Auchas, southern Namibia. C R Acad Sci Paris, 322: 901-906
[33]	Qiu Z X, 2003. Dispersals of Neogene carnivorans between Asia and North America. Bull Am Mus Nat Hist, 279: 18-31 DOI URL
[34]	Radović P, Bradić-Milinović K, 2018. A new elephantoid dental specimen from the Miocene of Kruševac basin in Central Serbia. Geol An Balk Poluos, 79(2): 1-10
[35]	Rasmussen D T, Gutierrez M, 2009. A mammalian fauna from the Late Oligocene of northwestern Kenya. Palaeontogr Abt A, 288: 1-52
[36]	Sanders W J, Miller E R, 2002. New proboscideans from the Early Miocene of Wadi Moghara, Egypt. J Vert Paleont, 22: 388-404 DOI URL
[37]	Sanders W J, Kappelman J, Rasmussen D T, 2004. New large-bodied mammals from the Late Oligocene site of Chilga, Ethiopia. Acta Palaeontol Pol, 49: 365-392
[38]	Sanders W J, Gheerbrant E, Harris J M et al., 2010. Proboscidea. In: Werdelin L, Sanders W J eds. Cenozoic Mammals of Africa. Berkeley, London: University of California Press. 161-251
[39]	Schlesinger G, 1917. Die Mastodonten des K. K. Naturhistorischen Hofmuseums. Denkschr K K Naturhist Hofm, Geol-Paläont, 1: 1-230
[40]	Shoshani J, Tassy P, 2005. Advances in proboscidean taxonomy and classification, anatomy and physiology, and ecology and behavior. Quat Int, 126-128: 5-20
[41]	Tassy P, 1985. La place des mastodontes Miocènes de l’ancien monde dans la phylogénie des Proboscidea (Mammalia):hypothèses et conjectures. Ph. D thesis. Paris: Université Pierre et Marie Curie. 1-861
[42]	Tassy P, 2013. L'anatomie cranio-mandibulaire de Gomphotherium angustidens (Cuvier, 1817) (Proboscidea, Mammalia): données issues du gisement d'En Péjouan (Miocène moyen du Gers, France). Geodiversitas, 35: 377-445 DOI URL
[43]	Tassy P, 2014. L’odontologie de Gomphotherium angustidens (Cuvier, 1817) (Proboscidea, Mammalia): données issues du gisement d’En Péjouan (Miocène moyen du Gers, France). Geodiversitas, 36: 35-115 DOI URL
[44]	Tassy P, Pickford M, 1983. Un nouveau mastodonte zygolophodonte (Proboscidea, Mammalia) dans le Miocène inférieur d'Afrique orientale: Systématique et paléoenvironnement. Géobios, 16: 53-77 DOI URL
[45]	Tobien H, 1972. Status of the genus Serridentinus Osborn 1923 (Proboscidea, Mammalia) and related forms. Mainzer Geowiss Mitt, 1: 143-191
[46]	Tobien H, 1978. The structure of the mastodont molar (Proboscidea, Mammalia). Part 3: the Oligocene mastodont genera Palaeomastodon, Phiomia and the Eo/Oligocene paenungulate Moeritherium. Mainzer Geowiss Mitt, 6: 177-208
[47]	Tobien H, 1996. Evolution of zygodons with emphasis on dentition. In: Shoshani J, Tassy P eds. The Proboscidea:Evolution and Palaeoecology of Elephants and Their Relatives. Oxford: Oxford University Press. 76-88
[48]	Tobien H, Chen G F, Li Y Q, 1988. Mastodonts (Proboscidea, Mammalia) from the Late Neogene and Early Pleistocene of the People’s Republic of China, part II, historical account: the genera Tetralophodon, Anancus, Stegotetrabelodon, Zygolophodon, Mammut, Stegolophodon. Mainzer Geowiss Mitt, 17: 95-220
[49]	Tsoukala E, 2000. Remains of a Pliocene Mammut borsoni (Hays, 1834) (Proboscidea, Mammalia), from Milia (Grevena, W. Macedonia, Greece). Ann Paleontol, 86(3): 165-191 DOI URL
[50]	Wang S Q, Li Y, Duangkrayom J et al., 2017. Early Mammut from the Upper Miocene of northern China, and its implications for the evolution and differentiation of Mammutidae. Vert PalAsiat, 55: 233-256
[51]	Wang S Q, Zhang X X, Li C X, 2020. Reappraisal of Serridentinus gobiensis Osborn & Granger and Miomastodon tongxinensis Chen: the validity of Miomastodon. Vert PalAsiat, 58: 134-158
[52]	Yan D F, 1979. Einige der Fossilen Miozänen Säugetiere der kreis von Fangxian in der Provinz Hupei. Vert PalAsiat, 17: 189-199
[53]	Ye J, Wu W Y, Ni X J et al., 2012. The Duolebulejin Section of northern Junggar Basin and its stratigraphic and environmental implication. Sci China Earth Sci, 10: 1523-1532
[54]	Zhang X X, Wang S Q, 2021. First report of Eozygodon (Mammutidae, Proboscidea) in Eurasia. Hist Biol, 33(9): 1661-1670
