甘肃临夏盆地早更新世旋角羚羊化石的首次发现

doi:10.19615/j.cnki.2096-9899.251030

摘要/Abstract

摘要：

旋角羚羊(Antilospira)是一类长有异向旋转角心的中小型牛科动物，在晚上新世至早更新世广泛分布于中国北方，是中国上新世至更新世的代表性牛科动物之一，对生物年代的判断和羚羊族动物的演化研究都具有重要意义。其中粗壮旋角羚羊(A. robusta)由于化石较破碎，一直缺乏相关的研究。报道了产自甘肃省临夏盆地东乡族自治县那勒寺乡早更新世午城黄土中的一件带角心的额骨新材料，其个体较大，角心异向旋转且盘旋，角基侧扁，角心表面具长而深的沟槽，前棱尖锐等特征，与榆社盆地的粗壮旋角羚羊形态最为接近；但由于临夏盆地的新材料角基部侧扁强烈，暂将其定为粗壮旋角羚羊相似种(Antilospira cf. A. robusta)。新材料的发现将旋角羚羊的分布范围扩大到中国西北地区，并为同时期具有异向旋转角心的羚羊族动物间的分类关系讨论提供了更多的形态学证据。新材料角心的CT扫描结果表明旋角羚羊的角心内部存在复杂的骨小梁重建过程。额窦的三维重建显示旋角羚羊的额窦中等程度发育，向后延伸至眼眶上缘，但没有延伸至角心基部。旋角羚羊的颅内模额叶部分明显向下弯折，颞叶宽、脑沟回较复杂，与中国现生的羚羊族动物差别较大。

关键词: 临夏盆地, 早更新世, 旋角羚羊, 牛科动物

Abstract:

Antilospira is a small to medium-sized antelope with heteronymously spiraled horn cores. It was widely distributed in northern China from the Late Pliocene to the Early Pleistocene. It is a typical fossil bovid with important implications for biostratigraphy and antilopin evolution in China. Antilospira robusta is a species with highly fragmentary materials and has previously only been briefly discussed. Here we report on a new frontal with horn cores from the Early Pleistocene Wucheng Loess in Nalesi Township, Dongxiang Autonomous County, Linxia Basin, Gansu Province. This new material features heteronymously spiraled horn cores, deep longitudinal grooves, a sharp anterior carena on the horn core, and a large body size, which are characteristics similar to those of A. robusta. However, the horn base of the new material is more compressed than all the previously discovered spiral-horned antelopes, so we attributed it to Antilospira cf. A. robusta. This is the first time Antilospira has been found in northwestern China, and this discovery provides more morphological data for the classification of this group. CT scans of the horn core reveal the well-remodeled horn core trabeculae in Antilospira, which is different from what is observed in Spirocerus. The frontal sinuses are moderately developed in the Linxia specimen, extending backwards to the orbit but not to the horn base. The virtual reconstruction of the endocranial cast indicated that Antilospira has bending and narrow frontal lobes, wide temporal lobes, and relatively complex sulci on the cerebral hemisphere, which differ from extant Antilopini bovids in China.

Key words: Linxia Basin, Early Pleistocene, spiral-horned antelope, bovid

中图分类号:

Q915.876

许兴栋, 史勤勤. 甘肃临夏盆地早更新世旋角羚羊化石的首次发现. 古脊椎动物学报, 2026, 64(1): 47-58.

XU Xing-Dong, SHI Qin-Qin. First discovery of the spiral-horned antelope Antilospira (Bovidae, Artiodactyla) from the Linxia Basin, Gansu, China. Vertebrata Palasiatica, 2026, 64(1): 47-58.

图/表 7

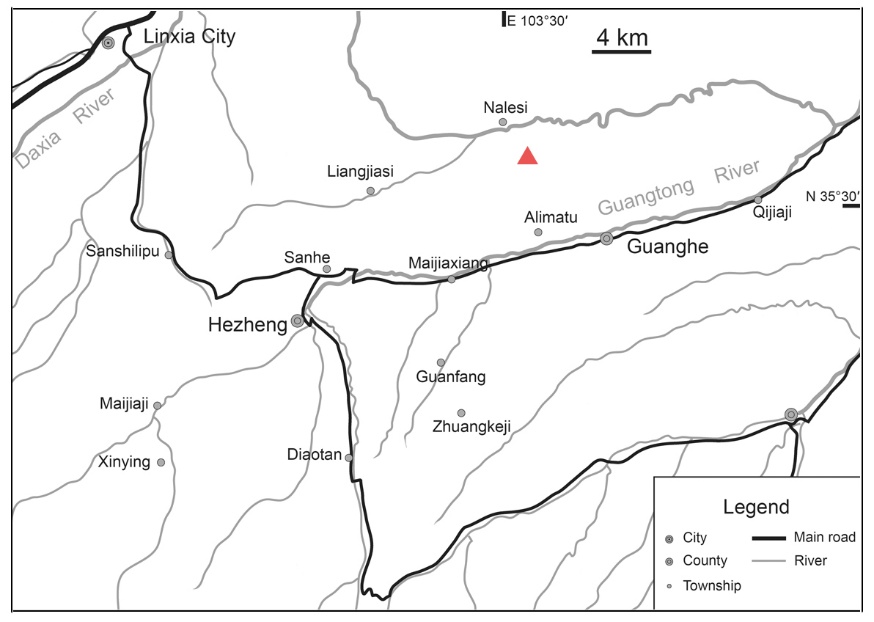

Fig. 1 Geographic map of China and Nalesi Village, Linxia Basin, Gansu Province A red triangle labels the Shitougou locality (LX0201)

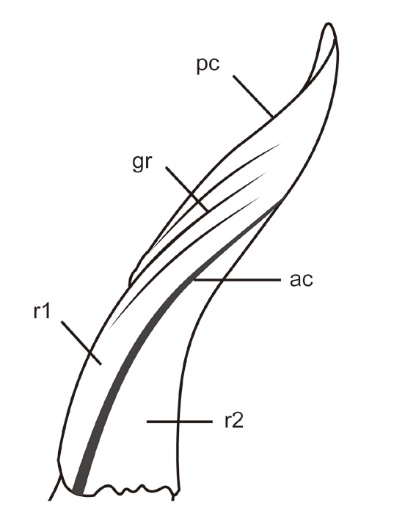

Fig. 2 Schematic diagram of the left horn core of Antilospira in anterior view Abbreviations: ac. anterior carena; gr. groove; pc. posterior carena; r1. ribbon 1; r2. ribbon 2

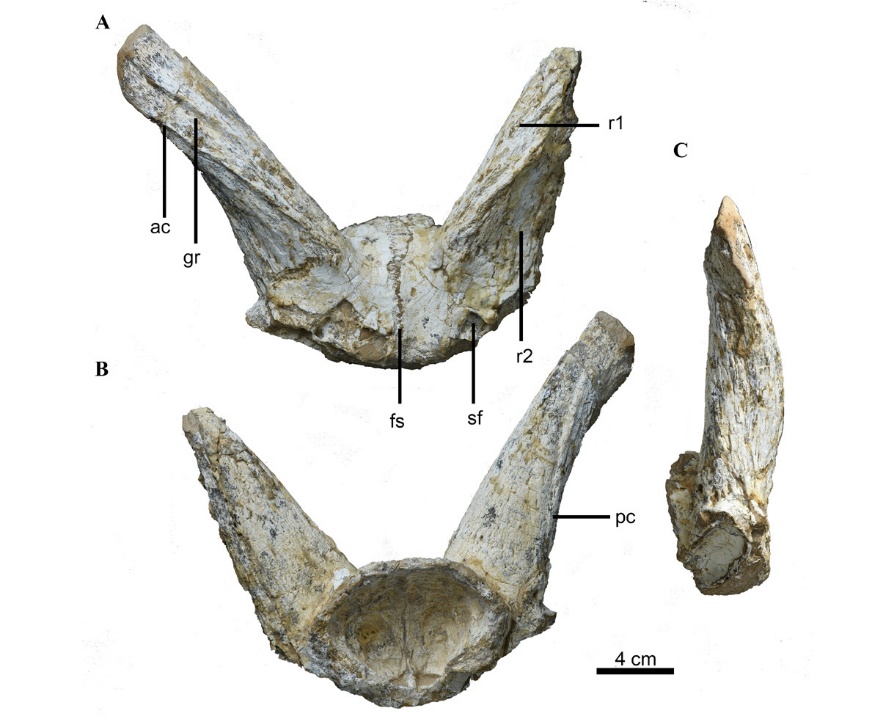

Fig. 3 Photograph of Antilospira cf. A. robusta (IVPP V28541) from Linxia Basin in anterior (A), posterior (B) and right side (C) views Abbreviations: fs. frontal suture; sf. supraorbital foramen. Other abbreviations are defined in Fig. 2

Table 1 Measurements of the horn cores of Antilospira cf. A. robusta (IVPP V28541) (mm)

Items	Measurements
Anteromedial-posterolateral diameter of the horn base (APD)	56.3 (L), 57.8 (R)
Transverse diameter of the horn base (TD)	31.1 (L), 32.6 (R)
Maximal diameter at the half	37.3 (R)
Minimal diameter at the half	28.7 (R)
Distance between the horn bases	27.2
Distance between the supraorbital foramina	59.5
Horn length, preserved	141.0 (L), 163.0 (R)

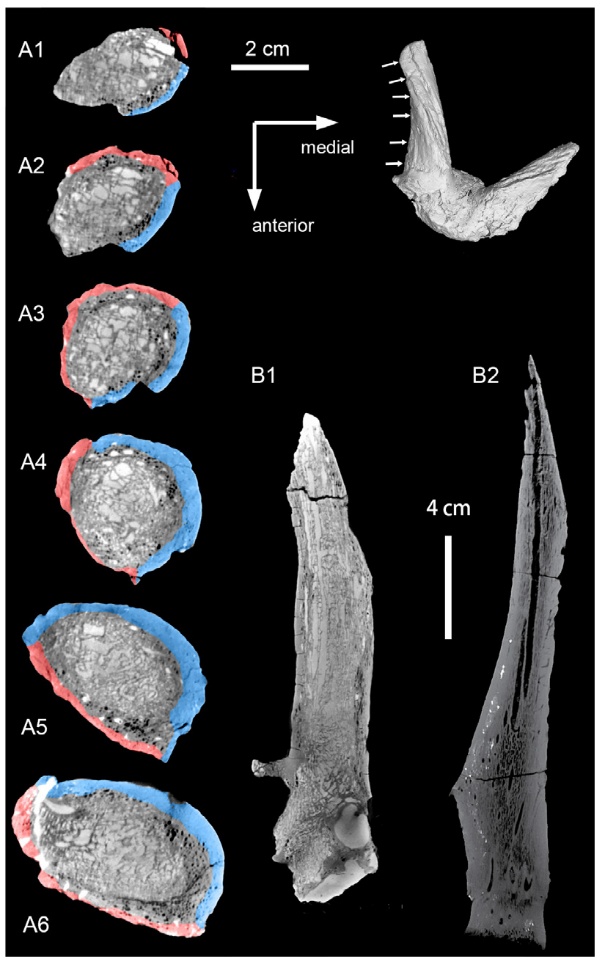

Fig. 4 Cross and sagittal sections of the right horn core of Antilospira cf. A. robusta (IVPP V28541) from Linxia Basin A. cross section from tip to base (1-6); B. comparison of the sagittal sections of the horn cores in Antilospira (B1) and Spirocerus (B2) The bone wall of ribbon 1 in A is indicated in blue, and the bone wall of ribbon 2 is indicated in red B2 is modified from Tong et al. (2022)

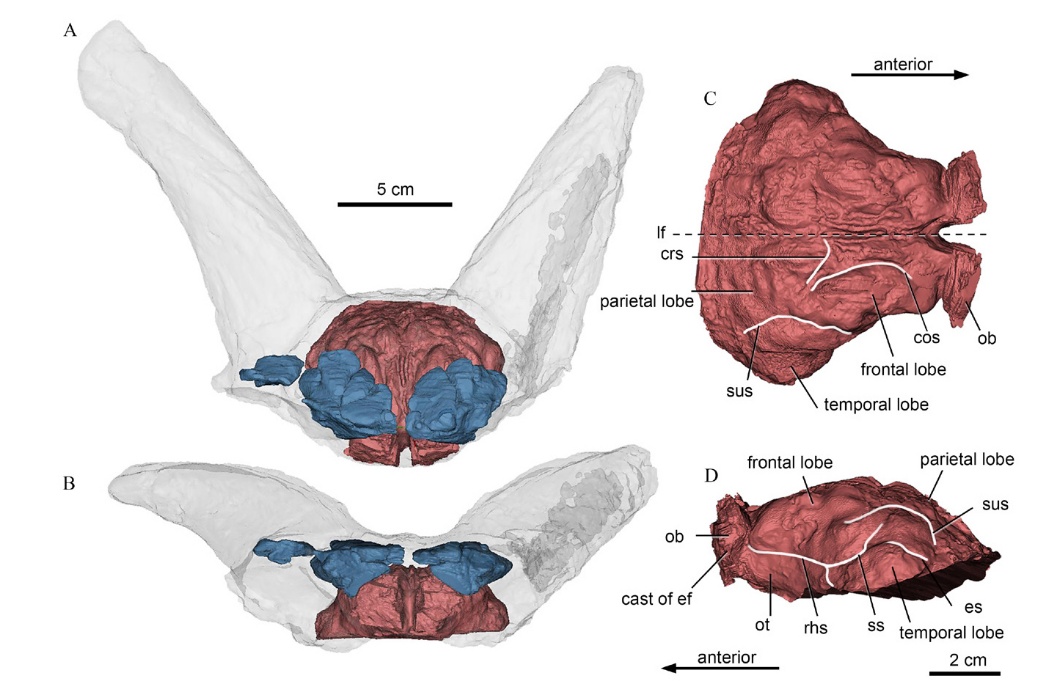

Fig. 5 3D reconstruction and endocranial cast of Antilospira cf. A. robusta (IVPP V28541) from Linxia Basin A, B. 3D reconstruction of the frontal sinuses (blue), endocranial cast (red), and the skull (transparent) in frontal (A) and anterior (B) views; C, D. virtual reconstruction of the endocranial cavity in dorsal (C) and left lateral (D) views. The main sulci are indicated with white lines Abbreviations: cos. coronal sulcus; crs. cruciate sulcus; ef. ethmoidal foramen; es. ectosylvian sulcus; lf. longitudinal fissure; ob. olfactory bulb; ot. olfactory tract; rhs. rhinal sulcus; ss. Sylvian sulcus; sus. suprasylvian sulcus

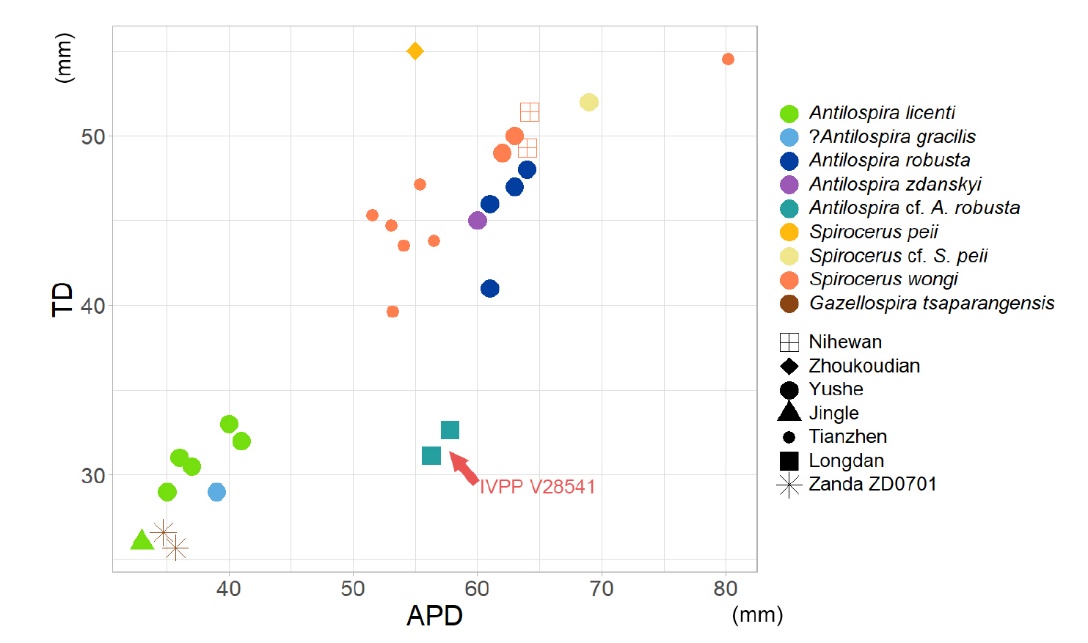

Fig. 6 Comparison of the horn base diameters of Antilospira, Spirocerus, and Gazellospira species found in China

参考文献 34

[1]	Alekseeva L I, 1977. Terrestrial fauna of the Early Anthropogene of Eastern Europe. Proc All-Union Paleont Soc, 300: 214
[2]	Athanassiou A, 2005. Gazellospira torticornis (Aymard, 1854) from the late Pliocene locality of Sésklo (Thessaly, Greece). In: Crégut-Bonnoure E ed. Les ongulés holarctiques du Pliocène et du Pléistocène. Actes colloque international Avignon, 10-22 septembre 2000. Quaternaire, hors-sér, 2: 137-144
[3]	Bai W P, Dong W, Zhang L M et al., 2019. New material of the Early Pleistocene spiral-horned antelope Spirocerus. (Artiodactyla, Mammalia) from North China and a discussion on its evolution. Quat Int, 522: 94-102 DOI URL
[4]	Bellucci L, Sardella R, 2015. The last Antilopini bovids from the Early Pleistocene of Italy. Quat Int, 357: 245-252 DOI URL
[5]	Boule M, Breuil H, Licent E et al., 1928. Le Paléolithique de la Chine. Arch Inst Paléontol Hum Mém, 4: 1-138
[6]	Chen X F, 1994. Stratigraphy and large mammals of the “Jinglean” stage, Shanxi, China. Quat Sci, 4: 339-353
[7]	Dmitrieva E L, 1977. Neogene antelopes of Mongolia and adjacent territories. Joint Soviet-Mongol Paleont Exp Trans Paleontol Inst Acad Sci USSR, 6: 1-115
[8]	Dong W, Fu R Y, Feng X W et al., 2009. Late Pleistocene mammalian fauna from the Mashandong, Chaoyang, Liaoning Province. Acta Anthrop Sin, 28(1): 95-109
[9]	Duvernois M P, Guérin C, 1989. Les Bovidae (Mammalia, Artiodactyla) du Villafranchien supérieur d'Europe occidentale. Geobios, 22(3): 339-379 DOI URL
[10]	Edinger T, 1948. Evolution of the horse brain. Mem Geol Soc Am, 25: 1-177
[11]	Evans H E, de Lahunta A, 2013. Miller’s Anatomy of the Dog. 4th ed. St. Louis: Elsevier Saunders. 1-850
[12]	Farke A A, 2010. Evolution and functional morphology of the frontal sinuses in Bovidae (Mammalia: Artiodactyla), and implications for the evolution of cranial pneumaticity. Zool J Linn Soc, 159(4): 988-1014 DOI URL
[13]	Garrido G, 2008. The most recent and complete set of Gazellospira torticornis (Bovidae, Artiodactyla, Mammalia) fossils known for the late Upper Pliocene of Western Europe (Fonelas P-1, Guadix Basin, Granada). In: Arribas A ed.. Vertebrados del Plioceno terminal en el suroeste de Europa:Fonelas P-1 y el proyecto Fonelas. Publicaciones del Instituto Geologico y Minero de Espana, Cuadernos del Museo Geominero, 10: 413-460
[14]	Hermier R, Merceron G, Kostopoulos D S, 2020. The emblematic Eurasian Villafranchian antelope Gazellospira (Mammalia: Bovidae): new insights from the Lower Pleistocene Dafnero fossil sites (northern Greece). Geobios, 61: 11-29 DOI
[15]	Kambaritdinov R K, 1966. Antilospira gracilis and Paracamelus cf. gigas from the Pavlodar Pre-Irtysh Region. Dokl Akad Nauk USSR, 9: 50-52
[16]	Kostopoulos D S, 2022. The Fossil Record of Bovids (Mammalia: Artiodactyla: Ruminantia: Pecora:Bovidae) in Greece. Fossil Vertebrates of Greece, Vol. 2: Laurasiatherians, Artiodactyles, Perissodactyles, Carnivorans, and Island Endemics. Cham: Springer International Publishing. 113-203
[17]	Pilgrim G E, Schaub S, 1939. The spiral-horned antelope of the European Upper Pliocene and its systematic position. Abh Schweiz Paläontol Ges, 62: 1-30
[18]	Qiu Z X, Wang B Y, Deng T et al., 2002. Notes on the mammal fauna from the bottom of loess deposits at Longdan, Dongxiang County, Gansu Province. Quat Sci, 22(1): 33-38
[19]	Qiu Z X, Deng T, Wang B Y, 2004. Early Pleistocene Mammalian Fauna from Longdan, Dongxiang, Gansu, China. Beijing: Science Press. 1-198
[20]	Rodrigo M A, 2011. The Villafranchian bovids of La Puebla de Valverde and Villarroya: systematics, phylogeny and paleobiology. Ph. D Thesis. Zaragoza: Faculty of Geological Sciences, Department of Earth Sciences, Paleontology Area, University of Zaragoza, Spain. 1-317
[21]	Sharapov S, 1986. The Kuruksay complex of Upper Pliocene mammals of the Afghan-Tadzhik Depression. In: Proceedings of the Academy of Sciences of the Tajik SSR, Vol. 300. Dushanbe: Donish. 1-232
[22]	Sokolov I I, 1959. On the postcranial skeleton and the outward appearance of Spirocerus kiakhtensis M. Pavlova. Vert PalAsiat, 3(1): 23-33
[23]	Tang Y J, 1980. Note on a small collection of Early Pleistocene mammalian fossils from northern Hebei. Vert PalAsiat, 18(4): 314-323
[24]	Teilhard de Chardin P, Young C C, 1931. Fossil mammals from Northern China. Palaeontol Sin, Ser C, 9: 1-67
[25]	Teilhard de Chardin P, Trassaert M, 1938. Cavicornia of south-eastern Shansi. Palaeontol Sin, New Ser C, 6: 1-98
[26]	Tong H W, Zhang B, Chen X et al., 2022. New fossils of small and medium-sized bovids from the Early Pleistocene Site of Shanshenmiaozui in Nihewan Basin, North China. Vert PalAsiat, 60(2): 134-168
[27]	Vangengeim E A, Beliajeva E I, Garutt V E et al., 1966. Mammals оf the Eopleistocene Key Sections of the Wеstеrп Transbaikalia. Moscow: Nauka Рrеss. 1-163
[28]	Vislobokova I A, Titov V V, Lavrov A V et al., 2020. Early Pleistocene spiral-horned Antelopes (Artiodactyla, Bovidae) from the Taurida Cave (Crimea, Russia). Paleontol J, 54: 81-90 DOI
[29]	Wang X M, Li Q, Tseng Z J, 2023. A new spiral-horned antelope, Gazellospira tsaparangensis sp. nov., from Pliocene Zanda Basin in Himalaya Mountain. J Mamm Evol, 30(4): 1067-1088 DOI
[30]	Young C C, 1932. On the Artiodactyla from the Sinanthropus Site at Choukoutien. Palaeontol Sin, Ser C, 8: 1-100
[31]	Zhang Y X, Sun D H, An Z S, 1999. Mammalian fossils from late Pliocene (Lwer MN 16) of Lingtai, Gansu Province. Vert PalAsiat, 37(3): 190-199
[32]	Zhang Z Q, Chen G F, 2009. Taxonomy and evolutionary process of Neogene Bovidae from China. Vert PalAsiat, 47(4): 265-281
[33]	Zhang Z Q, Wang L H, Chen G F et al., 2024. alaeovertebrata Sinica, Vol. III, Fasc 9(2). Beijing: Science Press. 1-354
[34]	Zhou T R, Li H Z, Liu Q S et al., 1991. Cenozoic Paleogeography of the Nihewan Basin. Beijing: Science Press. 1-162
