云南广南早泥盆世坡松冲组鱼类化石新材料

doi:10.19615/j.cnki.2096-9899.260206

摘要/Abstract

摘要：

记述了云南省文山州广南县珠街镇早泥盆世布拉格期坡松冲组发现的早期脊椎动物新材料，包括盾皮鱼类、肉鳍鱼类以及长吻三岐鱼(Sanqiaspis rostrata)、长角大窗鱼(Macrothyraspis longicornis)、鸭吻鱼(不定种) (Gantarostraspis sp. indet.)、文山鱼(未定种) (Wenshanaspis sp.)等多种盔甲鱼类。长角大窗鱼的新标本展示了其头甲的腹面，呈现出被狭窄腹环包围的口鳃腔。云南鱼目(Yunnanolepidoidei)和瓣甲鱼目(Petalichthyida)的新材料代表了滇西南文山地区盾皮鱼类化石的首次记录。这些新发现丰富了徐家冲脊椎动物群的鱼类多样性，并为坡松冲组与中国西南部和越南北部同期地层之间的生物地层对比提供了更多的古鱼类学资料。

关键词: 云南文山广南, 坡松冲组, 早泥盆世, 布拉格期, 盔甲鱼类, 盾皮鱼类

Abstract:

New findings of early vertebrates, including placoderms, sarcopterygians, and the galeaspids Sanqiaspis rostrata, Macrothyraspis longicornis, Gantarostraspis gengi, Wenshanaspis sp., are described from Posongchong Formation (Pragian, Lower Devonian) in Zhujie, Guangnan County, Wenshan Prefecture, Yunnan, China. The new specimen of Macrothyraspis longicornis exhibits the ventral side of its headshield, revealing a large branchial chamber encompassed by a very narrow ventral rim. The material of Yunnanolepidoidei and Petalichthyida represents the first fossil record of placoderms from Wenshan Prefecture, southwestern Yunnan. These new findings enrich the fish diversity of the Pragian Xujiachong Vertebrate Assemblage and provide additional paleoichthyological data for the biostratigraphic correlation between Posongchong Formation and its coeval strata in southwestern China and northern Vietnam.

Key words: Guangnan, Wenshan, Yunnan, Posongchong Formation, Early Devonian, Pragian, galeaspids, placoderms

中图分类号:

鲜祖敏, 莫雄, 关奇, 赵应天, 薛钦元, 李强, 刘军平, 朱敏. 云南广南早泥盆世坡松冲组鱼类化石新材料. 古脊椎动物学报, 2026, 64(2): 151-166.

XIAN Zu-Min, MO Xiong, GUAN Qi, ZHAO Ying-Tian, XUE Qin-Yuan, LI Qiang, LIU Jun-Ping, ZHU Min. Early Devonian fish material from Posongchong Formation of Guangnan, Yunnan, China. Vertebrata Palasiatica, 2026, 64(2): 151-166.

图/表 6

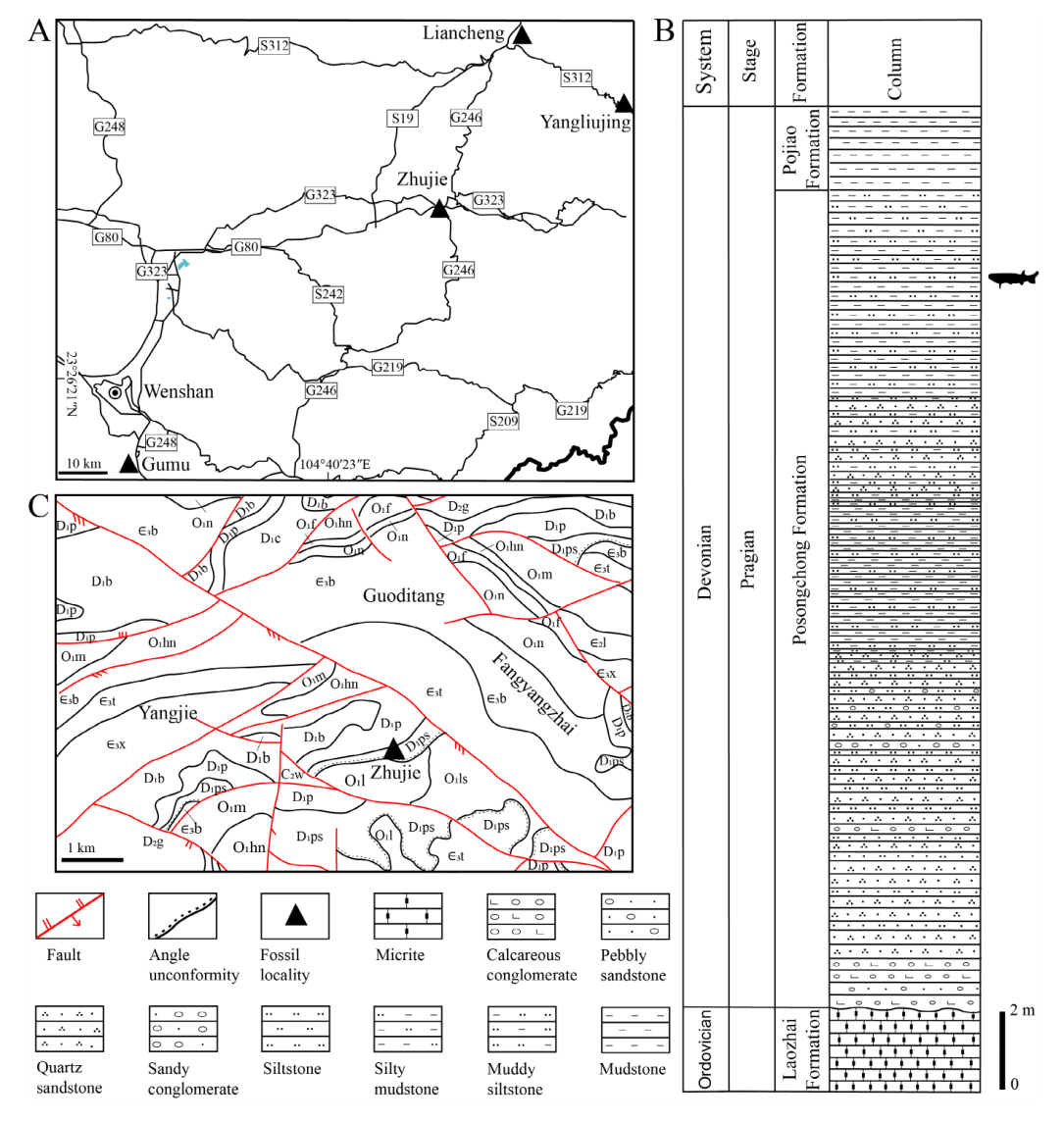

Fig. 1 Geological setting of the fossil fish sites in Wenshan Prefecture, Yunnan Province A. locality map of the fossil fish sites; B. fish-bearing lithological column in Zhujie Township, Guangnan County, Wenshan Prefecture, Yunnan Province; C. geological map in Zhujie, showing the fossil fish locality Abbreviations: ∈2l. Longha Formation; ∈3b. Bocaitian Formation; ∈3t. Tangjiaba Formation; ∈3x. Xiechang Formation; C2w. Weining Formation; D1b. Bajiaoqing Formation; D1c. Cuifengshan Formation; D1p. Pojiao Formation; D1ps. Posongchong Formation; D2g. Gumu Formation; O1f. Fenxiang Formation; O1hn. Honghuayuan Formation; O1l. Laozhai Formation; O1ls. Lengshuigou Formation; O1m. Meitan Formation; O1n. Nanjinguan Formation

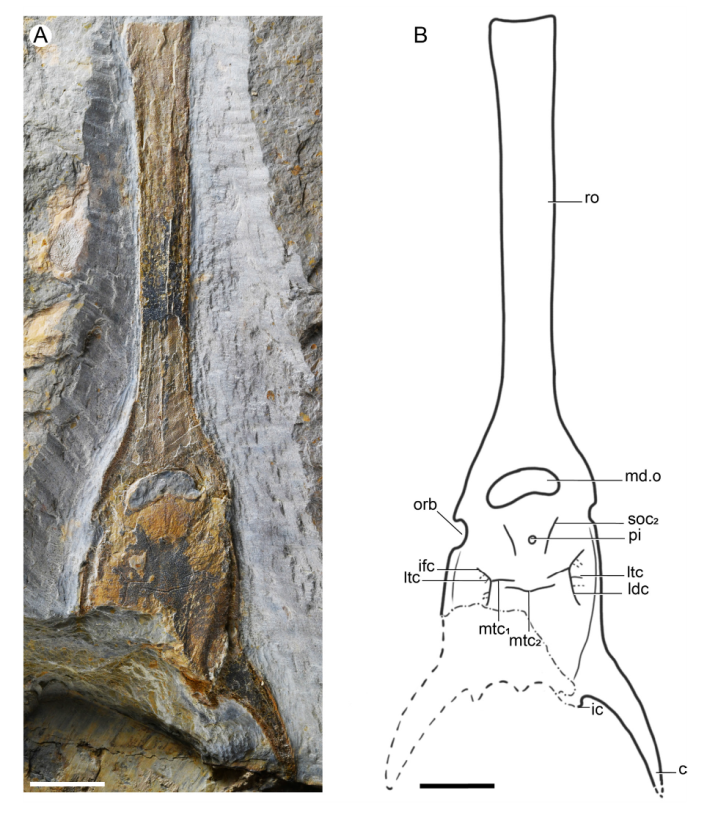

Fig. 2 Photograph (A) and interpretative drawing (B) of Sanqiaspis rostrata (YDDY10002) from Posongchong Formation, Guangnan County, Wenshan Prefecture, Yunnan in dorsal views scale bars = 1 cm

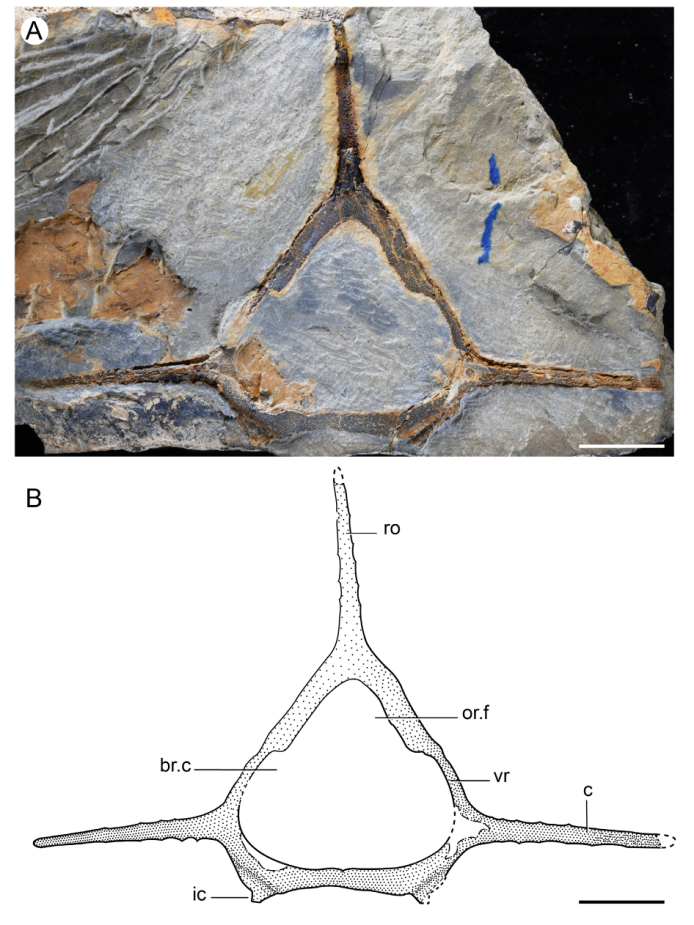

Fig. 3 Photograph (A) and interpretative drawing (B) of Macrothyraspis longicornis (IVPP V34296) from Posongchong Formation, Guangnan County, Wenshan Prefecture, Yunnan in ventral views Scale bars = 1 cm

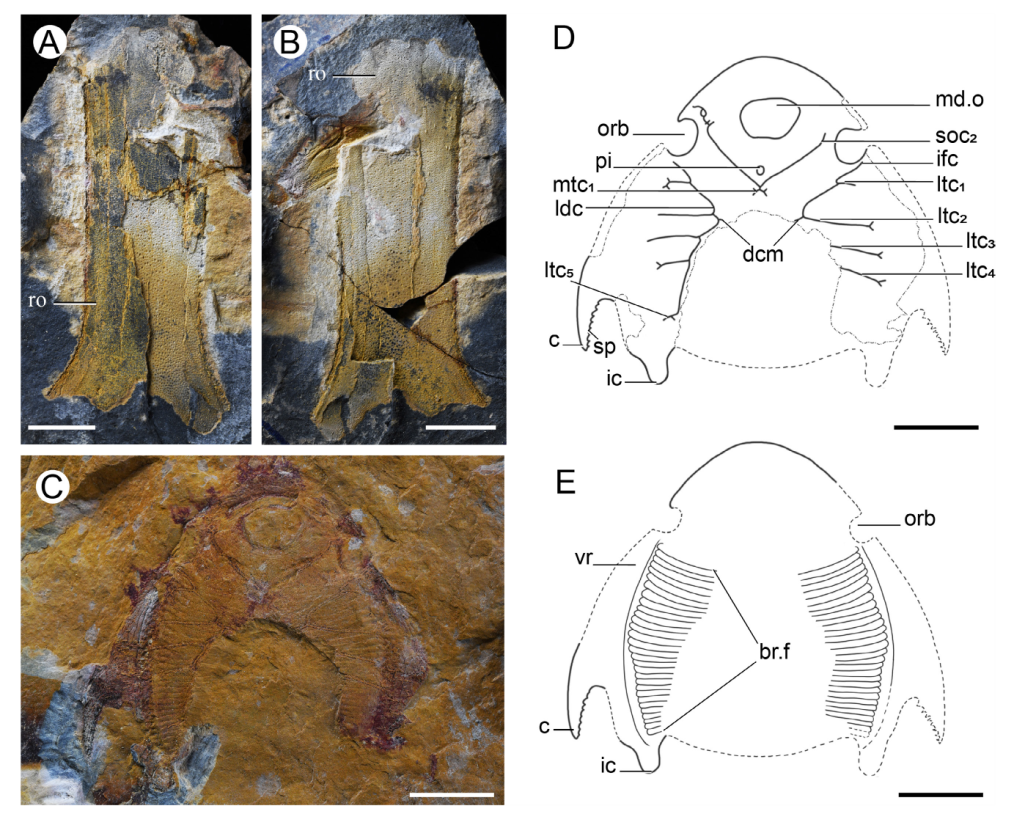

Fig. 4 Gantarostraspis gengi (A, B) and Wenshanaspis sp. (C-E) from Posongchong Formation, Guangnan County, Wenshan Prefecture, Yunnan A, B. photographs of incomplete rostral process of G. gengi, IVPP V34297a, b; C-E. photograph (C) and interpretative drawings (D, E) of an incomplete headshield of Wenshanaspis sp., YDDY10001b, in dorsal (C, D) and ventral (E) views. Scale bars = 1 cm

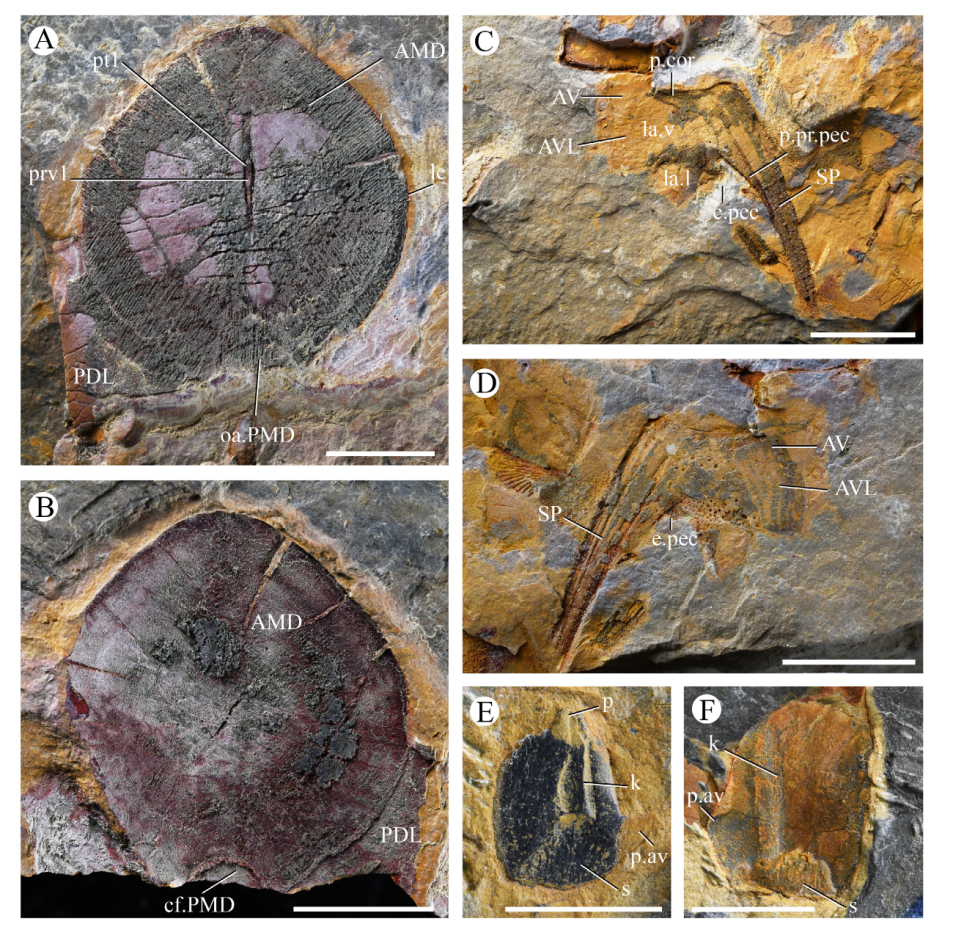

Fig. 5 Photographs of new specimens of placoderms and sarcopterygians from Posongchong Formation, Guangnan County, Wenshan Prefecture, Yunnan A, B. an anterior median dorsal plate of Yunnanolepidoidei indet. (YDDY10003) in dorsal (A) and visceral (B) views; C, D. an incomplete ventral wall of trunk-shield of Petalichthyida indet. (YDDY10004a, b) in visceral (C) and internal (D) views; E, F. Sarcopterygian scales, IVPP V34298 (E) and V34299 (F) Scale bars = 1 cm

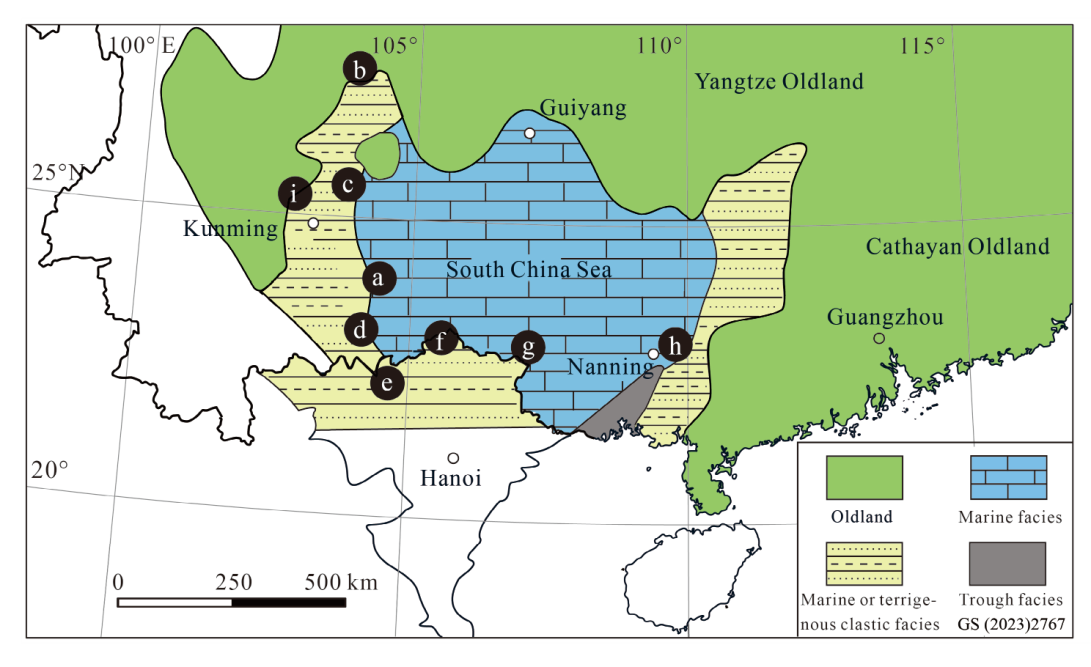

Fig. 6 Close-up of the paleogeographic map of the South China Block showing the major fish and plant fossil localities around the South China Sea (modified from Xue et al., 2018) Abbreviations: a. Posongchong Formation at Zhujie, Wenshan, Southeast Yunnan; b. Posongchong Formation at Zhaotong, Northeast Yunnan; c. Xujiachong Formation at Qujing, East Yunnan; d. Posongchong Formation at Zhichang, Wenshan, Southeast Yunnan; e. Khao Loc Formation at Tong Vai Valley, North Vietnam; f. Si Ka and Bac Bun formations at Dong Van, Ha Giang, North Vietnam; g. Lianhuashan and Nahkaoling formations at Chongzuo, Guangxi; h. Lianhuashan and Nahkaoling formations at Nanning, Guangxi; i. Posongchong Formation at Wuding, Northeast Yunnan

参考文献 40

[1]	Cao R G, 1979. A Lower Devonian agnathan of south-eastern Yunnan. Vert PalAsiat, 17: 118-120
[2]	Chang M M, Wang J Q, 1995. A new Emsian dipnorhynchid (Dipnoi) from Guangnan, southeastern Yunnan, China. Geobios, Mém Spec, 19: 233-239
[3]	Cope E D, 1885. The position of Pterichthys in the system. Geol Palaeont, 19: 289-291
[4]	Cui X D, Qiao T, Zhu M, 2019. Scale morphology and squamation pattern of Guiyu oneiros provide new insights into early osteichthyan body plan. Sci Rep, 9(1): 4411 DOI
[5]	Cui X D, Qiao T, Peng L J et al., 2025. New material of the Early Devonian sarcopterygian Styloichthys changae illuminates the origin of cosmine. J Syst Palaeont, 23(1): 2432273 DOI URL
[6]	Gai Z K, Zhu M, 2017. Evolutionary History of Agnathans and Their Fossil Records in China. Shanghai: Shanghai Scientific & Technical Publishers. 1-314
[7]	Gai Z K, Jiang W Y, Zhao W J et al., 2022. Redescription of the Sanqiaspidae (Galeaspida) from the Lower Devonian of South China and its biostratigraphic significance. Palaeobio Palaeoenv, 102(1): 173-191 DOI
[8]	Gross W, 1965. Über die Placodermen-Gattungen Asterolepis und Tiaraspis aus dem Devon Belgiens und einen fraglichen Tiaraspis-rest aus dem Devon Spitzbergens. Bull Inst R Sci Nat Belg, 41: 1-19
[9]	Guan Q, Liu J P, Wang W et al., 2023. Discussion on the newly discovered Wenshanaspis and its related strata in the Early Devonian in Guangnan, Yunnan. Geol Rev, 69(2): 441-447
[10]	Guo W, Nie T, Sun Y, 2019. New data on the biostratigraphy of the Early Devonian “Spirifer” tonkinensis brachiopod fauna in South China and adjacent region. Palaeobio Palaeoenv, 99(1): 29-43 DOI
[11]	Hao S G, 1988. A new Lower Devonian genus from Yunnan, with notes on the origin of leaf. Acta Bot Sin, 30: 441-448
[12]	Hao S G, Wang D M, 2003. The Early Devonian Posongchong flora of Yunnan, China—a window for research on evolution and diversity of early land vascular plants. Adv Earth Sci, 18: 877-883
[13]	Huxley T H, 1880. On the application of the laws of evolution to the arrangement of the Vertebrata, and more particularly of the Mammalia. Proc Sci Meet Zool Soc London, 1880: 649-661
[14]	Jaekel O M J, 1911. Die Wirbeltiere; eine Übersicht über die fossilen und lebenden Formen. Berlin: Verlag Gebrüder Borntraeger. Berlin: Verlag Gebrüder Borntraeger. 1-252
[15]	Janvier P, 1975. Remarques sur l'orifice naso-hypophysaire des céphalaspidomorphes. Ann Paléontol, 61(1): 3-16
[16]	Janvier P, 1996. Early Vertebrates. Oxford: Oxford University Press. 1-393
[17]	Liu S F, 1994. On the Middle Devonian series of Wuding, Yunnan. Vert PalAsiat, 32: 32-40
[18]	Liu Y H, 1973. On the new forms of Polybranchiaspiformes and Petalichthyida from Devonian of Southwest China. Vert PalAsiat, 11: 132-143
[19]	Liu Y H, 1975. Lower Devonian agnathans of Yunnan and Sichuan. Vert PalAsiat, 13: 202-216
[20]	Liu Y H, 1986. The sensory line system of the Galeaspida (Agnatha). Vert PalAsiat, 24: 245-259
[21]	Liu Y H, 1991. On a new petalichthyid, Eurycaraspis incilis gen. et sp. nov., from the Middle Devonian of Zhanyi, Yunnan. In: Chang M M, Liu Y H, Zhang G R eds. Early Vertebrates and Related Problems of Evolutionary Biology. Beijing: Science Press. 139-177
[22]	Liu Y H, Zhu M, Gai Z K et al., 2015. Subclass Galeaspida. In: Zhu Med. Palaeovertebrata Sinica, Vol. I. Beijing: Science Press. 141-272
[23]	McCoy F, 1848. On some new fossil fish from the Carboniferous Period. Ann Mag Nat Hist, 2: 1-10, 115-133
[24]	Pan J, 1992. New Galeaspids (Agnatha) from the Silurian and Devonian of China. Beijing: Geological Publishing House. 1-86
[25]	P’an K, Wang S T, 1978. Devonian Agnatha and Pisces of South China. In:Institute of Geology and Mineral Resources and Chinese Academy of Geological Sciences eds. Symposium on the Devonian System of South China. Beijing: Geological Publishing Press. 298-333
[26]	Romer A S, 1955. Herpetichthyes, Amphibioidei, Choanichthyes or Sarcopterygii? Nature, 176: 126 DOI
[27]	Tarlo L B H, 1992. Chapter 25 Agnatha. In: Harland WB, Holland CH, House M R etal. eds. The Fossil Record. London: The Geological Society of London. 629-636
[28]	Wang J Q, Wang N Z, 1992. Early Devonian galeaspid Agnatha from Southeast of Yunnan, China. Vert PalAsiat, 30: 185-194
[29]	Wang J Q, Zhu M, 1994. Zhaotongaspis janvieri gen. et sp. nov., a galeaspid from Early Devonian of Zhaotong, northeastern Yunnan. Vert PalAsiat, 32: 231-243
[30]	Wang J Q, Fan J H, Zhu M, 1996. Early vertebrate fossils from the Early Devonian of Zhaotong District, northeastern Yunnan. Vert PalAsiat, 34: 1-17
[31]	Wang J Q, Gai Z K, Zhu M, 2005. A new species of Macrothyraspis (Galeaspida, Agnatha) from Wenshan, Yunnan, China. Vert PalAsiat, 43: 304-311
[32]	Wang S T, 1988. Vertebrate palaeontology 2. In: Hou HF, Wang ZQ,Xian S Y ed. Devonian Stratigraphy, Paleontology and Sedimentary Facies of Longmenshan, Sichuan. Beijing: Geological Publishing Press. 341-342
[33]	Wang Y, 1994. Lower Devonian miospores from Gumu in the Wenshan district, southeastern Yunnan. Acta Micropalaeont Sin, 11: 319-332
[34]	Wang Y J, Zhu M, 2018. Redescription of Phymolepis cuifengshanensis (Antiarcha: Yunnanolepididae) using high-resolution computed tomography and new insights into anatomical details of the endocranium in antiarchs. PeerJ, 6: e4808
[35]	Xue J Z, Huang P, Wang D et al., 2018. Silurian-Devonian terrestrial revolution in South China: taxonomy, diversity, and character evolution of vascular plants in a paleogeographically isolated, low-latitude region. Earth-Sci Rev, 180: 92-125 DOI URL
[36]	Zhao W J, Zhu M, 2010. Siluro-Devonian vertebrate biostratigraphy and biogeography of China. Palaeoworld, 19(1-2): 4-26 DOI URL
[37]	Zhao W J, Zhu M, Jia L T, 2002. New discovery of galeaspids from Early Devonian of Wenshan, southeastern Yunnan, China. Vert PalAsiat, 40: 97-113
[38]	Zhu M, 1991. New information on Diandongpetalichthys (Placodermi: Petalichthyida). In: Chang MM, Liu YH, Zhang G R eds. Early Vertebrates and Related Problems of Evolutionary Biology. Beijing: Science Press. 179-194
[39]	Zhu M, 1996. The phylogeny of the Antiarcha (Placodermi, Pisces), with the description of Early Devonian antiarchs from Qujing, Yunnan, China. Bull Mus Natl Hist Nat, 18: 233-347
[40]	Zhu M, Wang J Q, 1996. On the Lower-Middle Devonian boundary in Qujing, Yunnan. J Stratigr, 20(1): 58-63
