滇东曲靖地区早泥盆世真盔甲鱼科一新属种

doi:10.19615/j.cnki.2096-9899.220412

摘要/Abstract

摘要：

记述了采自云南曲靖下泥盆统西屯组中的真盔甲鱼科一新属种——硕大西屯鱼(Xitunaspis magnus gen. et sp. nov.)。新属具有真盔甲鱼科的典型特征,包括一个纵长裂隙状的中背孔、没有内角、发达的中背管以及只有3对从侧背管上伸出的侧横管等,但其具有大而厚的头甲以及更原始的感觉管系统等特征明显区别于其他真盔甲鱼类。系统发育分析表明,西屯鱼属(Xitunaspis)与盾鱼属 (Dunyu)和真盔甲鱼属(Eugaleaspis)共同组成一个单系类群——真盔甲鱼科支系(Eugaleaspidae Liu, 1965), 并且三者之间西屯鱼与盾鱼的亲缘关系更为密切。作为曲靖地区下泥盆统西屯组中确凿的真盔甲鱼类化石记录,西屯鱼的发现加深了对真盔甲鱼类形态学及真盔甲鱼目乃至盔甲鱼亚纲中感觉管系统演化的认知。

关键词: 云南曲靖, 早泥盆世, 真盔甲鱼类,西屯鱼, 感觉管系统

Abstract:

A new genus and species of the family Eugaleaspidae (Eugaleaspiformes, Galeaspida), Xitunaspis magnus gen. et sp. nov., is described from the Lower Devonian Xitun Formation in Qujing, Yunnan Province, China. The new genus displays the diagnostic characters of the Eugaleaspidae, including a slit-like median dorsal opening, no inner cornual process, developed median dorsal canals, and only three pairs of lateral transverse canals extending from lateral dorsal canals. Different from the other eugaleaspids, X. magnus possesses a large headshield with thick dermal bone and a more plesiomorphic sensory canal system. The phylogenetic analysis of the Galeaspida reveals that Xitunaspis clusters with Dunyu and Eugaleaspis to form a monophyletic clade Eugaleaspidae Liu, 1965, and has a closer relationship with Dunyu than Eugaleaspis by sharing the thick dermal bone of the headshield. The new finding represents the first convincing fossil record of the Eugaleaspiformes in the middle Lochkovian Xitun Formation and adds to our knowledge about the morphology of eugaleaspiforms and the evolutionary pattern of the sensory canal system in the Eugaleaspiformes and even Galeaspida.

Key words: Qujing, Yunnan, Early Devonian, Xitunaspis, Eugaleaspiformes, sensory canal system

中图分类号:

Q915.861

孙浩然, 盖志琨, 蔡家琛, 李强, 朱敏, 赵文金. 滇东曲靖地区早泥盆世真盔甲鱼科一新属种. 古脊椎动物学报, 2022, 60(3): 169-183.

SUN Hao-Ran, GAI Zhi-Kun, CAI Jia-Chen, LI Qiang, ZHU Min, ZHAO Wen-Jin. Xitunaspis, a new eugaleaspid fish (Eugaleaspiformes, Galeaspida) from the Lower Devonian of Qujing, Yunnan. Vertebrata Palasiatica, 2022, 60(3): 169-183.

图/表 7

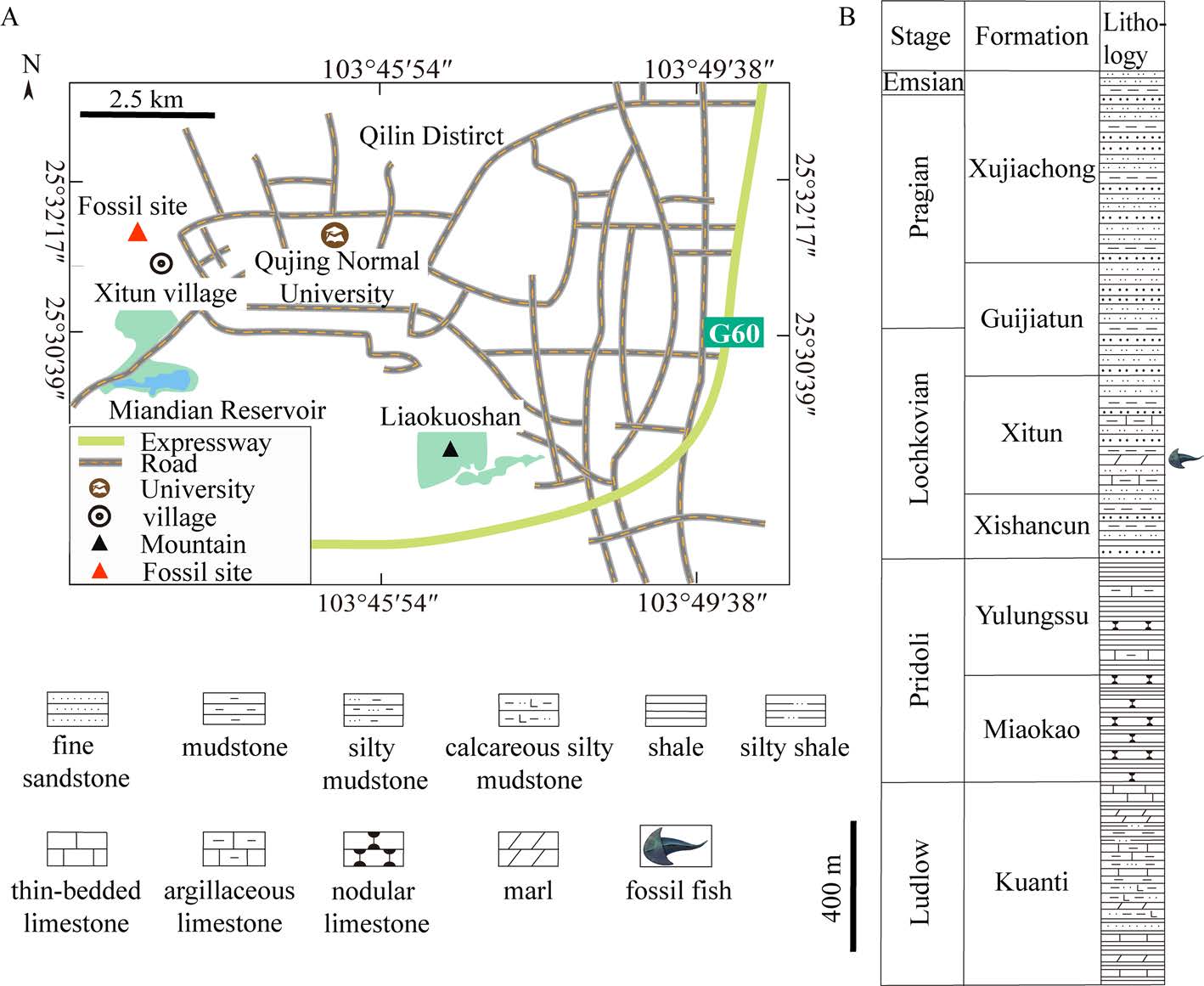

Fig. 1 Map showing the fossil locality (A) and the fish-bearing lithological column (B) in Qujing Revised from Si et al., 2015; Meng et al., 2021

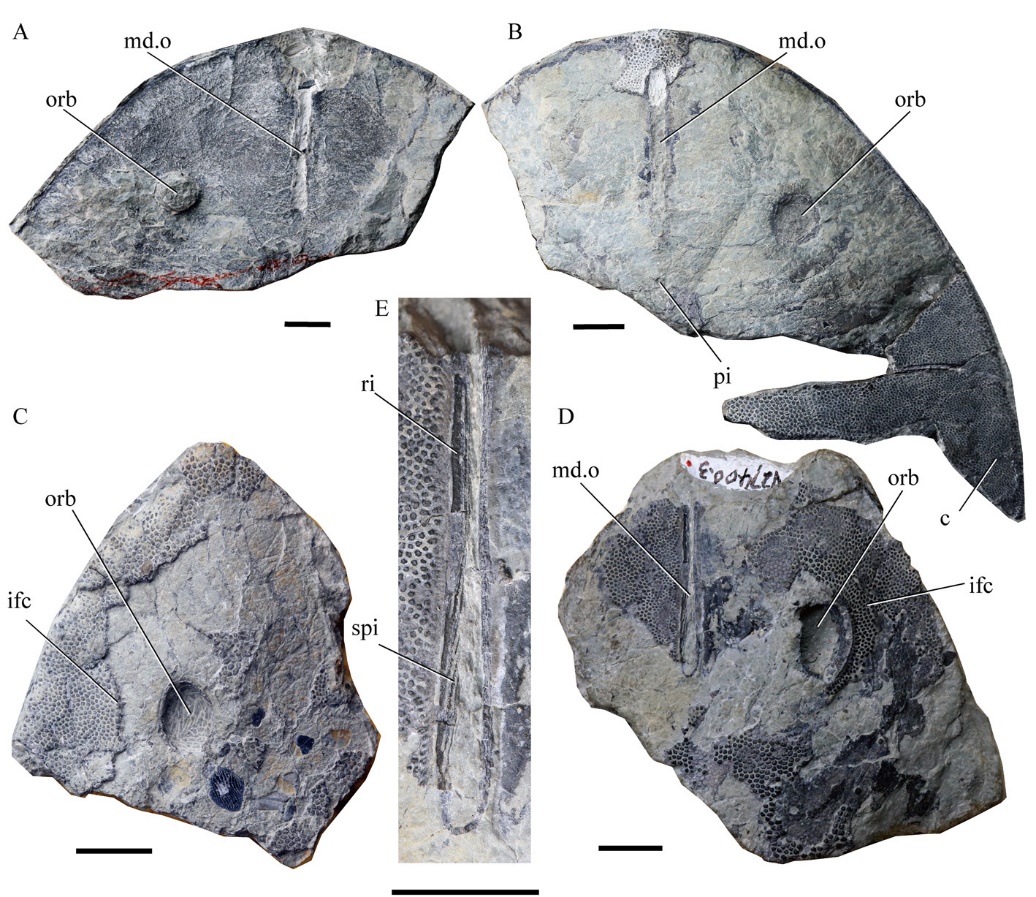

Fig. 2 Photographs of Xitunaspis magnus gen. et sp. nov. from the Xitun Formation in Qujing A, B. the external (A) and internal mould (B) of a nearly complete headshield, IVPP V 27400.1 (holotype); C, D. two incomplete headshields, V 27400.2 (C), V 27400.3 (D); E. close-up of the median dorsal opening of V 27400.3. A. in ventral view; B-E. in dorsal view; scale bars equal 10 mm Abbreviations: c. cornual process; ifc. infraorbital canal; md.o. median dorsal opening; orb. orbital opening; pi. pineal opening; ri. dermal ring encircling median dorsal opening; spi. spine-like ridge on the dermal ring of median dorsal opening

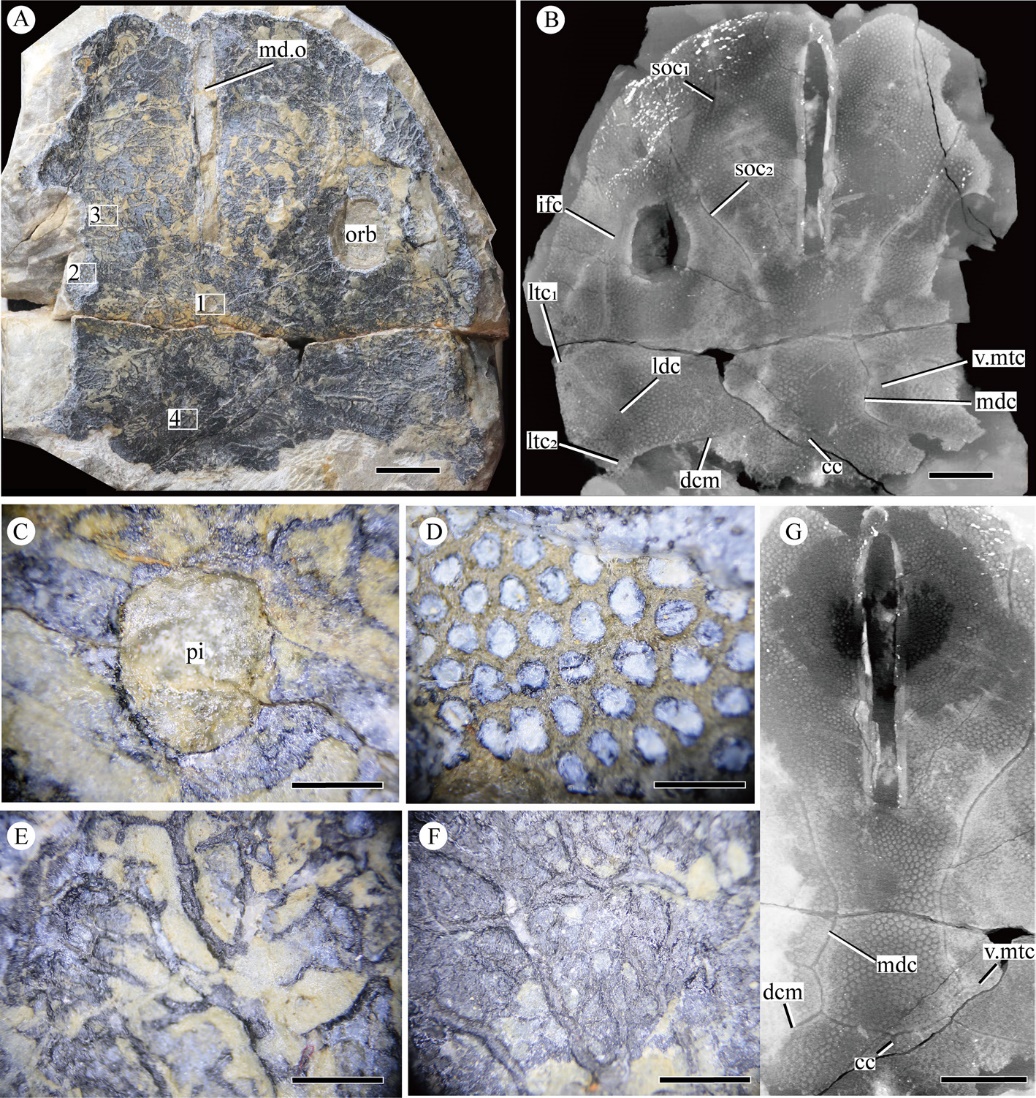

Fig. 3 Photographs of Xitunaspis magnus gen. et sp. nov. and its CT slices A. photograph of a nearly complete headshield V 27400.4; B. CT slice of V 27400.4, showing the sensory canal system; C. close-up of the pineal opening (box inset 1 of Fig. 3A); D. close-up of tubercles (box inset 2 of Fig. 3A); E. close-up of vascular plexus (box inset 3 of Fig. 3A); F. close-up of vascular plexus (box inset 4 of Fig. 3A); G. CT slice of V 27400.4, showing the middle region of the headshield A, C-F. in ventral view; B, G. in dorsal view; scale bars in A, B and G equal 10 mm, scale bars in C-F equal 1 mm For abbreviations see Fig. 2 plus cc. central canal; dcm. dorsal commissure; ldc. lateral dorsal canal; ltc. lateral transverse canal; mdc. median dorsal canal; soc1. anterior supraorbital canal; soc2. posterior supraorbital canal; v. mtc. vestige of median transverse canal

Table 1 Measurements of Xitunaspis magnus gen. et sp. nov. from Qujing (mm)

Items	IVPP V 27400
Items	1a	1b	2	3	4
Maximum length of the headshield	—	103.4	—	—	—
Maximum width of the headshield	146.0	146.0	—	—	—
Length of the headshield in midline	—	85.0	—	—	—
Diameter of the orbital openings	10.0	10.0	9.0	10.1	10.1
Distance between the orbital openings	44.0	44.0	—	—	39.0
Long axis of the median dorsal opening	34.2	34.2	—	—	34.0
Short axis of the median dorsal opening	4.2	4.2	—	—	3.5
Length of the pre-pineal region in midline	50.0	—	—	—	—
Length of the post-pineal region in midline	34.1	—	—	—	—

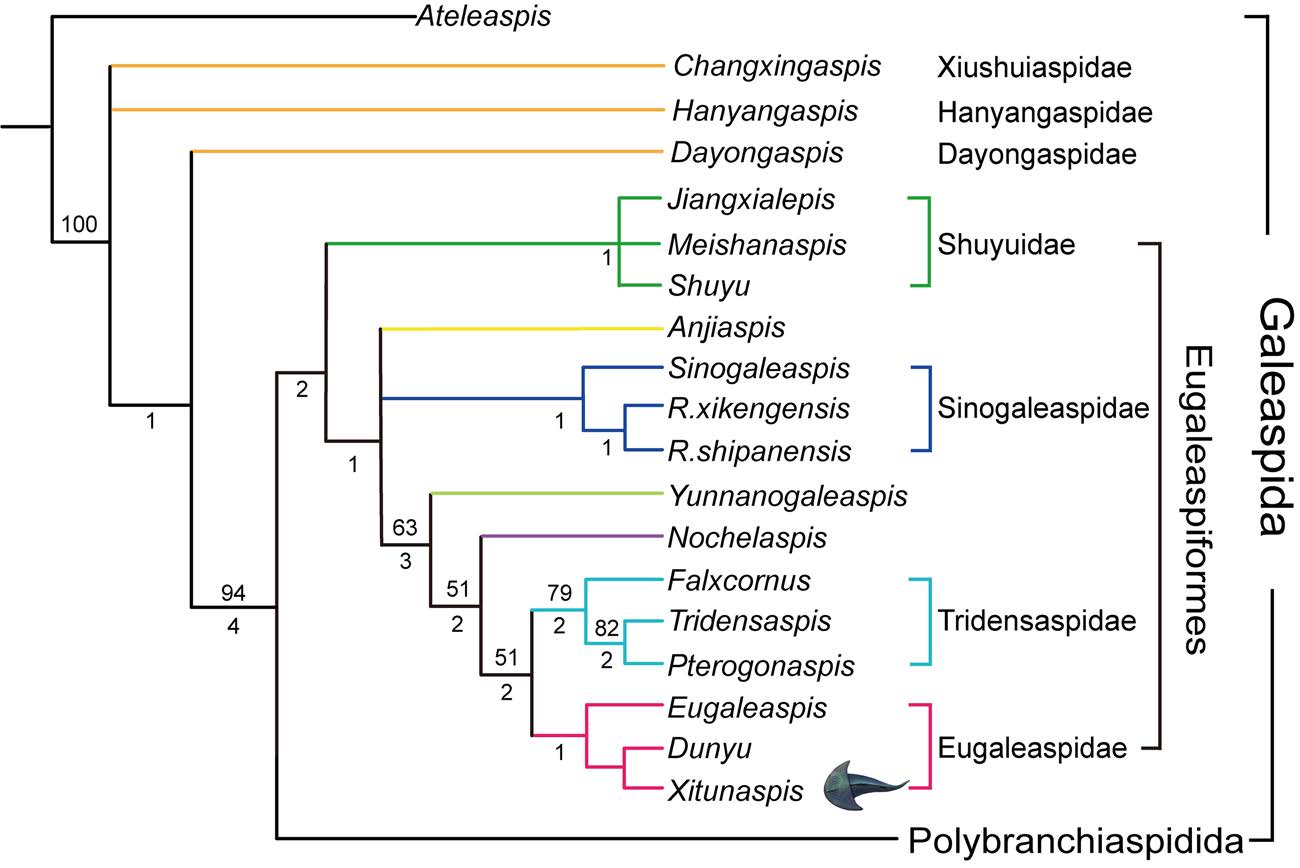

Fig. 5 Strict consensus tree of the two most parsimonious trees and cladistically-based classification of the basal galeaspids and Eugaleaspiformes The clade Polybranchiaspidida is simplified and same as that in Shan et al., 2020. Tree length = 198, consistency index (CI) = 0.4192, retention index (RI) = 0.7609, numbers on branches denote bootstrap frequencies (above node) and Bremer support values (below node), bootstrap frequencies below 50 are not shown

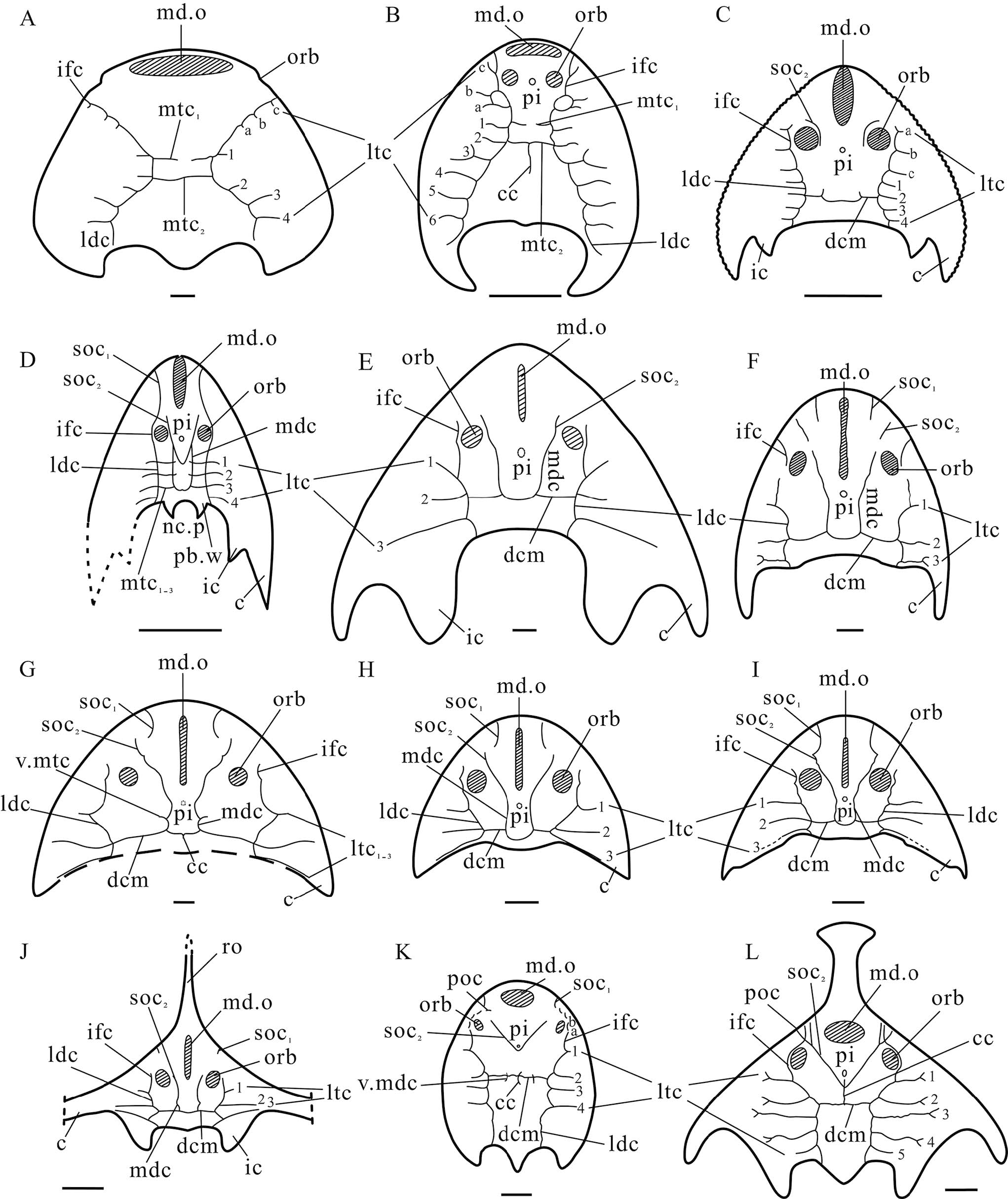

Fig. 6 The sensory canal system of galeaspids in different groups (revised from Shan et al., 2020) A, B. plesiomorphic taxa: A. Hanyangaspis guodingshanensis (P’an et al., 1975; Pan, 1986); B. Changxingaspis gui (Wang, 1991); C-J. Eugaleaspiformes: C. Meishanaspis lehmani (Gai et al., 2005); D. Rumporostralis xikengensis (Shan et al., 2020); E. Nochelaspis maeandrine (Zhu, 1992); F. Dunyu longiforus (Zhu et al., 2012); G. Xitunaspis magnus; H. Eugaleaspis changi (Liu, 1965); I. E. xujiachongensis (Liu, 1975); J. Pterogonaspis yuhaii (Zhu, 1992); K. Polybranchiaspiformes: Polybranchiaspis liaojiaoshanensis (Liu, 1975); L. Huananaspiformes: Sanchaspis magalarostrata (Pan and Wang, 1981). Scale bars equal 10 mm Abbreviations: 1-6. the first to sixth lateral transverse canal or median transverse canal issuing from lateral dorsal canal; a-c. the first to third lateral transverse canal issuing from the infraorbital canal; ic. inner cornual process; mtc. median transverse canal; nc.p. pore for passage of the neural canal; pb.w. postbranchial wall; poc. preorbital commissure; ro. rostral process; v.mdc. vestige of median dorsal canal; other abbreviations see Figs. 2-3

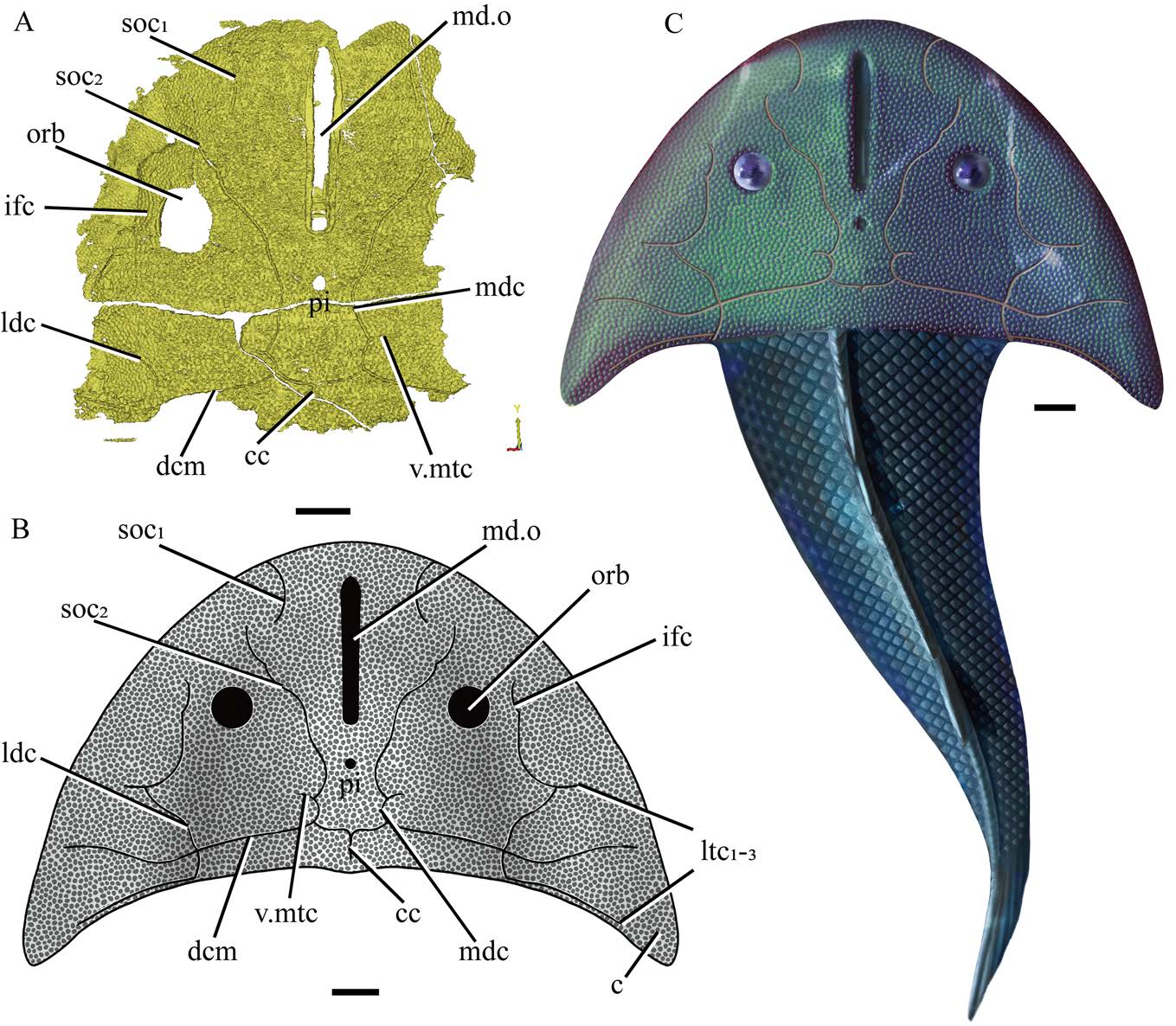

Fig. 4 Reconstruction of Xitunaspis magnus gen. et sp. nov. in dorsal view A. 3D reconstruction of IVPP V 27400.4 based on Micro-CT scanning; B. restoration of the headshield by Feng Mingjuan; C. life restoration by Shi Aijuan; scale bars equal 10 mm For abbreviations see Figs. 2-3

参考文献 38

[1]	Cai C Y, Fang Z J, Li X X et al., 1994. New advance in the study of biostratigraphy of Lower and Middle Devonian marine-continental transitional strata in east Yunnan. Sci China Ser B, 24: 634-639
[2]	Gai Z K, Zhu M, 2017. Evolutionary History of Agnathans and their Fossil Records in China. Shanghai: Shanghai Scientific & Technical Publishers. 1-314
[3]	Gai Z K, Zhu M, Zhao W J, 2005. New material of eugaleaspids from the Silurian of Changxing, Zhejiang, China, with a discussion on the eugaleaspid phylogeny. Vert PalAsiat, 43: 61-75
[4]	Gai Z K, Lu L W, Zhao W J et al., 2018. New polybranchiaspiform fishes (Agnatha: Galeaspida) from the middle Palaeozoic of China and their ecomorphological implications. PLoS One, 13: e0202217 DOI URL
[5]	Gai Z K, Shan X R, Sun Z X et al., 2020. A redescription of the Silurian Sinogaleaspis shankouensis (Galeaspida, stem-Gnathostomata) from Jiangxi, China. Vert PalAsiat, 58: 85-99
[6]	Goloboff P A, Catalano S A, 2016. TNT version 1.5, including a full implementation of phylogenetic morphometrics. Cladistics, 32: 221-238 DOI PMID
[7]	Janvier P, 1996. Early Vertebrates. Oxford: Clarendon Press. 1-393
[8]	Jiang W Y, Zhu M, Shi X D et al., 2021. Qushiaspis, a new genus of gantarostrataspid fish (Galeaspida, stem-Gnathostomata) from the Lower Devonian of Yunnan, China. Hist Biol, doi: 10.1080/08912963.2021.1888086 DOI
[9]	Liu S F, 1983. Agnathan from Sichuan, China. Vert PalAsiat, 21: 97-102
[10]	Liu S F, 1986. Fossil eugaleaspid from Guangxi. Vert PalAsiat, 24: 1-9
[11]	Liu Y H, 1965. New Devonian agnathans of Yunnan. Vert PalAsiat, 9: 125-134
[12]	Liu Y H, 1975. Lower Devonian agnathans of Yunnan and Sichuan. Vert PalAsiat, 13: 202-216
[13]	Liu Y H, 1979. On the arctolepid Arthrodira from Lower Devonian of Yunnan. Vert PalAsiat, 17: 23-34
[14]	Liu Y H, 1980. A nomenclatural note on Eugaleaspis for Galeaspis Liu, 1965; Eugaleaspidae for Galeaspidae Liu, 1965; Eugaleaspiformes for Galeaspiformes Liu, 1965. Vert PalAsiat, 18: 256-257
[15]	Liu Y H, 1986. The sensory line system of the Galeaspida (Agnatha). Vert PalAsiat, 24: 245-259
[16]	Liu Y H, 2002. The age and correlation of some Devonian fish-bearing beds of East Yunnan, China. Vert PalAsiat, 40: 52-69
[17]	Liu Y L, Huang L B, Zong R W et al., 2021. The oldest eugaleaspiform (Galeaspida) from the Silurian Fentou Formation (Telychian, Llandovery) of Wuhan, South China. J Syst Palaeont, 19: 253-264 DOI URL
[18]	Maddison W P, Maddison D R, 2019. Mesquite: a modular system for evolutionary analysis. Version 3. 61. http://mesquiteproject.org
[19]	Meng X Y, Gai Z K, 2021. Falxcornus, a new genus of Tridensaspidae (Galeaspida, stem-Gnathostomata) from the Lower Devonian in Qujing, Yunnan, China. Hist Biol, doi: 10.1080/08912963.2021.1952198 DOI
[20]	Meng X Y, Zhu M, Gai Z K, 2021. Redescription of Nochelaspis maeandrine, the largest eugaleaspiform from the Lower Devonian of Qujing, Yunnan. Vert PalAsiat, 59: 257-272
[21]	Pan J, 1986. Notes on Silurian vertebrates of China. Bull Chinese Acad Geol Sci, 15: 161-190
[22]	Pan J, 1992. New galeaspids (Agnatha) from the Silurian and Devonian of China. Beijing: Geological Publishing House. 1-86
[23]	Pan J, Wang S T, 1981. New discoveries of polybranchiaspids from Yunnan Province. Vert PalAsiat, 19: 113-121
[24]	P’an K, Wang S T, Liu Y P, 1975. The Lower Devonian Agnatha and Pisces from South China. Prof Pap Stratigr Paleont, 1: 135-169
[25]	Qiao T, King B, Long J A et al., 2016. Early gnathostome phylogeny revisited: multiple method consensus. PLoS One, 11: e0163157 DOI URL
[26]	Sansom R S, 2009. Phylogeny, classification and character polarity of the Osteostraci (Vertebrata). J Syst Palaeont, 7: 95-115 DOI URL
[27]	Shan X R, Zhu M, Zhao W J et al., 2020. A new genus of sinogaleaspids (Galeaspida, stem-Gnathostomata) from the Silurian Period in Jiangxi, China. PeerJ, 8: e9008 DOI URL
[28]	Si C D, Gai Z K, Zhao W J, 2015. A new species of Siyingia from the Lower Devonian Xishancun Formation of Qujing, Yunnan. Vert PalAsiat, 53: 1-13
[29]	Tarlo L B, 1967. Agnatha. In: Harland W B ed.ed. The Fossil Record. London: The Geological Society of London. 629-636
[30]	Wang N Z, 1991. Two new Silurian galeaspids (jawless craniates) from Zhejiang Province, China, with a discussion of galeaspid-gnathostome relationships. In: ChangM M, LiuY H, ZhangG R eds. Early Vertebrates and Related Problems of Evolutionary Biology. Beijing: Science Press. 41-66
[31]	Zhao W J, 2005. Galeaspids of the middle Paleozoic in China and its palaeogeographic significance. J Palaeogeogr, 7: 305-320
[32]	Zhao W J, Zhu M, 2010. Siluro-Devonian vertebrate biostratigraphy and biogeography of China. Palaeoworld, 19: 4-26 DOI URL
[33]	Zhu M, 1992. Two new eugaleaspids, with a discussion on eugaleaspid phylogeny. Vert PalAsiat, 30: 169-184
[34]	Zhu M, 2000. Catalogue of Devonian vertebrates in China, with notes on bio-events. Cour Forsch-Inst Senckenberg, 223: 373-390
[35]	Zhu M, Gai Z K, 2006. Phylogenetic relationships of galeaspids (Agnatha). Vert PalAsiat, 44: 1-27
[36]	Zhu M, Wang N Z, Wang J Q, 2000, Devonian macro- and microvetebrate assemblages of China. Cour Forsch-Inst Senckenberg, 223: 361-372
[37]	Zhu M, Liu Y H, Jia L T et al., 2012. A new genus of eugaleaspidiforms (Agnatha: Galeaspida) from the Ludlow, Silurian of Qujing, Yunnan, southwestern China. Vert PalAsiat, 50: 1-7
[38]	Zhu M et al., 2015. Palaeovertebrata Sinica, Vol. I, Fishes, Fascile 1, Agnathans. Beijing: Science Press. 1-294
